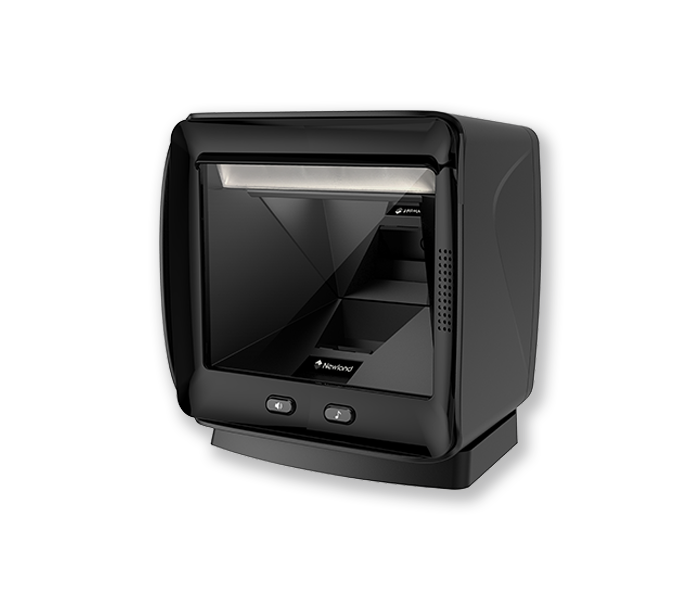

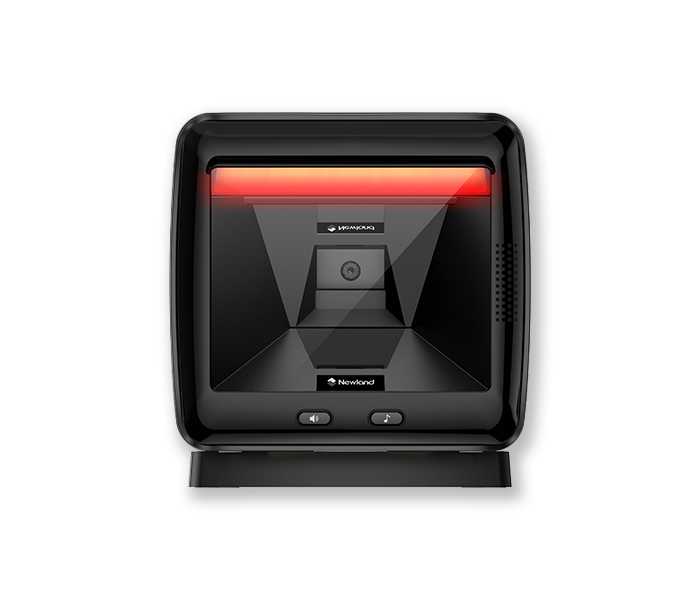

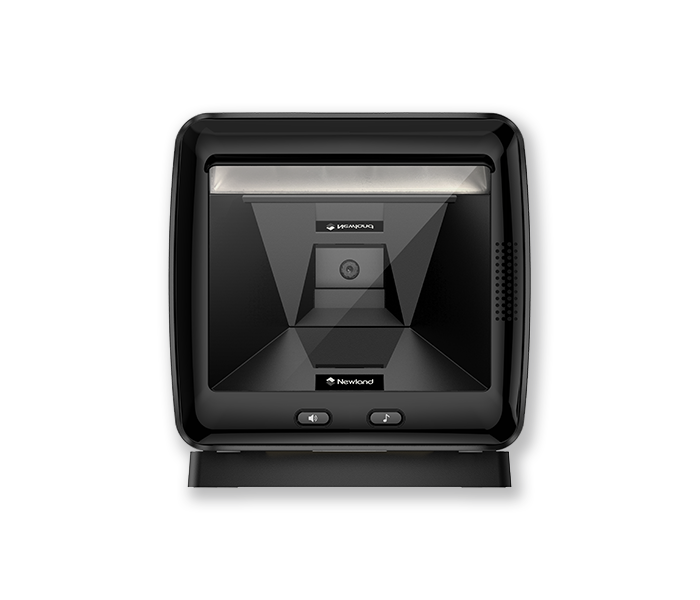

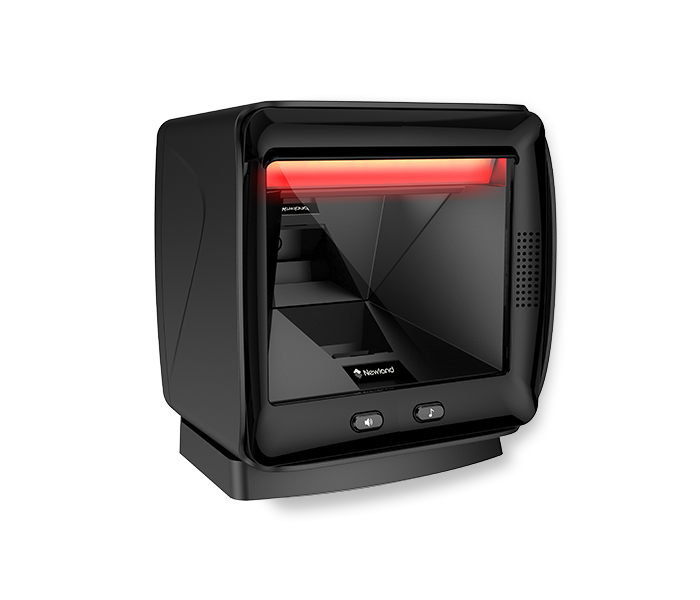

The On-counter Scanner activates a decode session every time it detects a barcode presented to it, and the target barcode shown in the window will not be read repeatedly.
With 3.5m/s motion tolerance, the scanner can quickly capture moving goods, which greatly enhances efficiency.
Large scan window meets demands of goods with different sizes. When goods come closer to the scan window, the scanner will conduct quick scanning.
6 kinds of status indicators show current working status of the scanner, including decoding, configuration, communication and abnormal status.
Sound effect and volume keys are provided for users to select one suitable for their application environment.
Armed with Newland’s sixth-generation of technology, this scanner can scan 1D and 2D barcodes and delivers stunning performance on decoding the EAN-13 barcode.
Performance | Image Sensor | 1280 * 1088 CMOS | |
| Illumination | Red LED (614nm~624nm) | ||
| Symbologies | 2D: PDF417, QR Code, Data Matrix, Aztec 1D: Code 11, Code 128, Code 39, Code 32 (Italian Pharma Code), GS1-128 (UCC/EAN-128), AIM 128, ISBT 128, CodaBar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China Post 25, MSI-Plessey, Plessey, GS1 Databar, GS1 Composite, Databar (RSS) |
||
| Resolution | ≥3mil (1D) | ||
| Typical Depth of Field | EAN-13: 0mm-140mm (13mil) EAN-13: 50mm-90mm (5mil) |
||
| Scan Angle | Roll: 360°, Pitch: ±55°, Skew: ±50° | ||
| Min. Symbol Contrast | 15% (Code 128 10mil) | ||
| Scan Mode | Advanced sense mode | ||
| Motion Tolerance | 350cm/s | ||
| Field of View | Horizontal 42.4°, Vertical 36° | ||
Physical | Dimensions (L×W×H) | Without base: 151 (W)×141.5 (H) ×97.5 (D)mm With base: 151 (W)×156.5 (H)×108.5 (D)mm |
|
| Weight | 542g (without base), 678g (with base) | ||
| Notification | Beep, LED indicator | ||
| Operating Voltage | 5VDC±5% | ||
| Current@5VDC | Operating: 0.4A (typical), 0.5A (max.) Idle: 0.25A |
||
| Interfaces | RS-232, USB | ||
| Rated Power Consumption | Operating: 2W (typical), 2.5W (max.) Idle: 1.25W |
||
Environmental | Operating Temperature | -20℃ to 50℃ (-4°F to 122°F) | |
| Storage Temperature | -40℃ to 70℃ (-40°F~158°F) | ||
| Humidity | 5% to 95% (non-condensing) | ||
| ESD | ±15 KV (air discharge); ±8 KV (direct discharge) | ||
| Sealing | IP52 | ||
| Ambient Light | 0~100,000lux (natural light) | ||
Certifications | Certificates | FCC Part15 Class B, CE EMC Class B, RoHS | |
| Image Sensor | |
|---|---|
| 1280 * 1088 CMOS | |
| Illumination | |
|---|---|
| Red LED (614nm~624nm) | |
| Symbologies | |
|---|---|
| 2D: PDF417, QR Code, Data Matrix, Aztec 1D: Code 11, Code 128, Code 39, Code 32 (Italian Pharma Code), GS1-128 (UCC/EAN-128), AIM 128, ISBT 128, CodaBar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China Post 25, MSI-Plessey, Plessey, GS1 Databar, GS1 Composite, Databar (RSS) |
|
| Resolution | |
|---|---|
| ≥3mil (1D) | |
| Typical Depth of Field | |
|---|---|
| EAN-13: 0mm-140mm (13mil) EAN-13: 50mm-90mm (5mil) |
|
| Scan Angle | |
|---|---|
| Roll: 360°, Pitch: ±55°, Skew: ±50° | |
| Min. Symbol Contrast | |
|---|---|
| 15% (Code 128 10mil) | |
| Scan Mode | |
|---|---|
| Advanced sense mode | |
| Motion Tolerance | |
|---|---|
| 350cm/s | |
| Field of View | |
|---|---|
| Horizontal 42.4°, Vertical 36° | |
| Dimensions (L×W×H) | |
|---|---|
| Without base: 151 (W)×141.5 (H) ×97.5 (D)mm With base: 151 (W)×156.5 (H)×108.5 (D)mm |
|
| Weight | |
|---|---|
| 542g (without base), 678g (with base) | |
| Notification | |
|---|---|
| Beep, LED indicator | |
| Operating Voltage | |
|---|---|
| 5VDC±5% | |
| Current@5VDC | |
|---|---|
| Operating: 0.4A (typical), 0.5A (max.) Idle: 0.25A |
|
| Interfaces | |
|---|---|
| RS-232, USB | |
| Rated Power Consumption | |
|---|---|
| Operating: 2W (typical), 2.5W (max.) Idle: 1.25W |
|
| Operating Temperature | |
|---|---|
| -20℃ to 50℃ (-4°F to 122°F) | |
| Storage Temperature | |
|---|---|
| -40℃ to 70℃ (-40°F~158°F) | |
| Humidity | |
|---|---|
| 5% to 95% (non-condensing) | |
| ESD | |
|---|---|
| ±15 KV (air discharge); ±8 KV (direct discharge) | |
| Sealing | |
|---|---|
| IP52 | |
| Ambient Light | |
|---|---|
| 0~100,000lux (natural light) | |
| Certificates | |
|---|---|
| FCC Part15 Class B, CE EMC Class B, RoHS | |
