Decode Capability
1D, 2D -
Connectivity
Corded -
Dimension
117.5×144×67.5mm -
Weight
111g -
Sealing
IP52 -
Interface
USB, RS-232 (Optional)

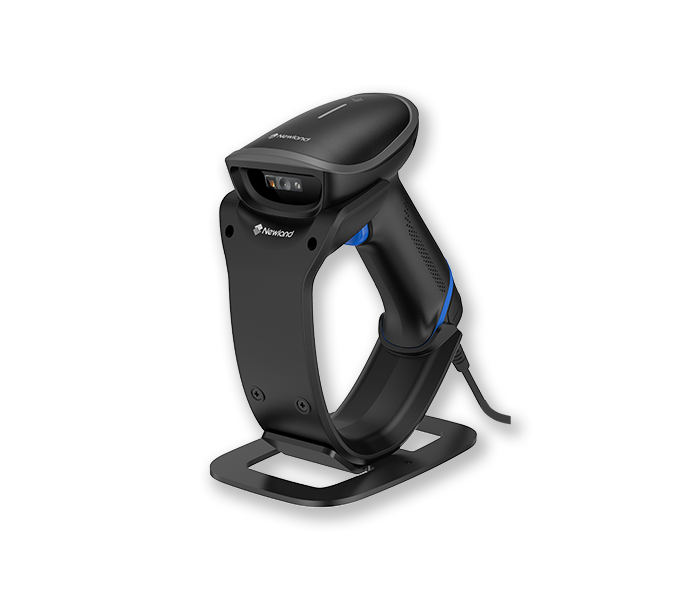

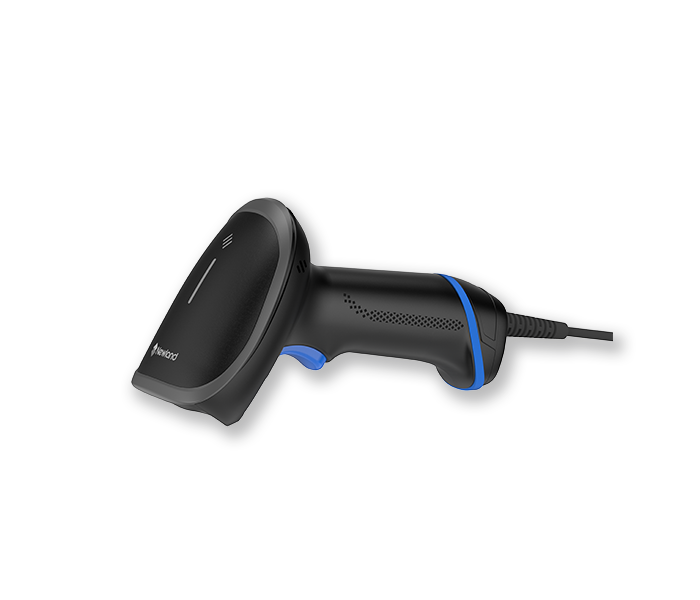

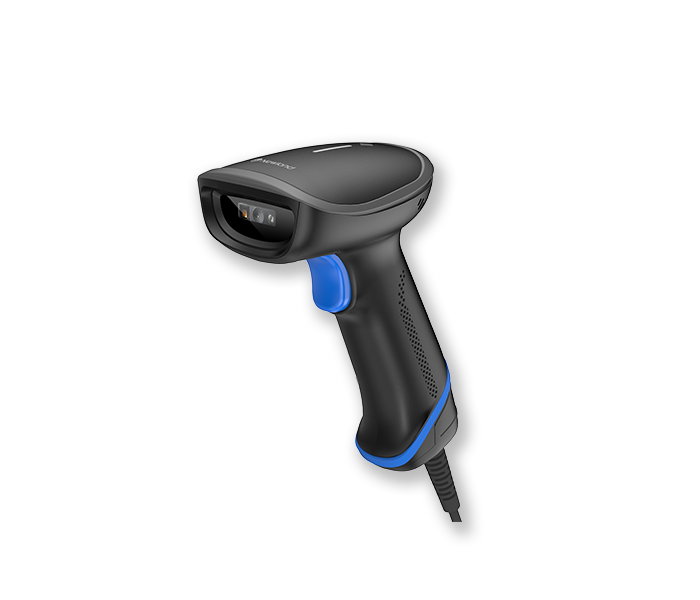

HR2000 Handheld Scanner
Product specifications
-
Features
-
Specifications
-
Downloads
-
Accessories
Features
- Cost-effective Solution
HR2000 provides a cost-effective data capture solution that allows customers to enjoy the capabilities of 2D barcode scanner for the price of 1D scanner.
- Durable Construction
HR2000, built into an IP52-sealed and drop resistant (1.5m) housing with no moving parts, fortifies itself inside and out.
- Elegant Appearance
Blending ergonomics and aesthetics in its design, the NLS-HR2000 not only ensures operator comfort and productivity for intensive handheld scanning but also meets the aesthetic needs of the O2O era.
- Outstanding Performance
Equipped with an outstanding CPU, this CPU-based scanner can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen.
Specifications
Performance | Image Sensor | 640×480 CMOS | |
Illumination | White LED | ||
Aiming | Red LED | ||
Symbologies | 1D: Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5,China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS). 2D: PDF417,QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR. |
||
Resolution | ≥3mil | ||
Typical Depth of Field | EAN-13: 40mm-260mm (13mil) Code 39: 30mm-150mm (5mil) PDF 417: 30mm-120mm (6.7mil) Data Matrix: 20mm-125mm (10mil) |
||
Scan Angle | Pitch: ±60°, Skew: ±60°, Roll: 360° | ||
Field of View | Horizontal 45°, Vertical 34° | ||
Min. Symbol Contrast | 20% (code128 10mil) |
Physical | Interface | RS-232 (Optional), USB | |
Operating Voltage | 5VDC±5% | ||
Rated Power Consumption | 1223mW (typical) | ||
Current@5VDC | Operating: 245.7mA (typical), 248.9mA (max.) Idle: 157.12mA |
||
Dimensions (L×W×H) | 117.5×144×67.5mm | ||
Weight | 111g | ||
Notification | Beep, LED, Vibration |
Environmental | Operating Temperature | -20°C to 60°C (-4°F to 140°F) | |
Storage Temperature | -40°C to 70°C (-40°F to 158°F) | ||
Humidity | 5%~95% (non-condensing) | ||
ESD | ±15 KV (air discharge); ±8 KV (direct discharge) | ||
Drop | 1.5m | ||
Sealing | IP52 |
Certificates | Certificates & Protection | CE, FCC, RoHS 2.0, IEC62471 |
Performance
Image Sensor | |
---|---|
640×480 CMOS |
Illumination | |
---|---|
White LED |
Aiming | |
---|---|
Red LED |
Symbologies | |
---|---|
1D: Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5,China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS). 2D: PDF417,QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR. |
Resolution | |
---|---|
≥3mil |
Typical Depth of Field | |
---|---|
EAN-13: 40mm-260mm (13mil) Code 39: 30mm-150mm (5mil) PDF 417: 30mm-120mm (6.7mil) Data Matrix: 20mm-125mm (10mil) |
Scan Angle | |
---|---|
Pitch: ±60°, Skew: ±60°, Roll: 360° |
Field of View | |
---|---|
Horizontal 45°, Vertical 34° |
Min. Symbol Contrast | |
---|---|
20% (code128 10mil) |
Physical
Interface | |
---|---|
RS-232 (Optional), USB |
Operating Voltage | |
---|---|
5VDC±5% |
Rated Power Consumption | |
---|---|
1223mW (typical) |
Current@5VDC | |
---|---|
Operating: 245.7mA (typical), 248.9mA (max.) Idle: 157.12mA |
Dimensions (L×W×H) | |
---|---|
117.5×144×67.5mm |
Weight | |
---|---|
111g |
Notification | |
---|---|
Beep, LED, Vibration |
Environmental
Operating Temperature | |
---|---|
-20°C to 60°C (-4°F to 140°F) |
Storage Temperature | |
---|---|
-40°C to 70°C (-40°F to 158°F) |
Humidity | |
---|---|
5%~95% (non-condensing) |
ESD | |
---|---|
±15 KV (air discharge); ±8 KV (direct discharge) |
Drop | |
---|---|
1.5m |
Sealing | |
---|---|
IP52 |
Certificates
Certificates & Protection | |
---|---|
CE, FCC, RoHS 2.0, IEC62471 |
Downloads
Specification Sheets
-
NLS-HR2000-Datasheet_en
Language: English
Manual & Technical Literature
-
AccessoryGuide_HRSeriesWired
Language: English
-
NLS-HR2000_User_Guide
Language: English
