Equipped with AI function, it has excellent barcode positioning and barcode reconstruction capabilities. At the same time, intelligent learning can automatically adjust parameters according to different scenarios..
Provide white and red direct illumination, blue diffuse ring lights, rich lighting system can meet different materials (such as reflection), shape (curved surface), background and bar code color of all kinds of complex scanning code needs.
With the new generation of industrial decoding algorithm, it has strong decoding ability for DPM barcodes such as radium carving and dotting barcodes.

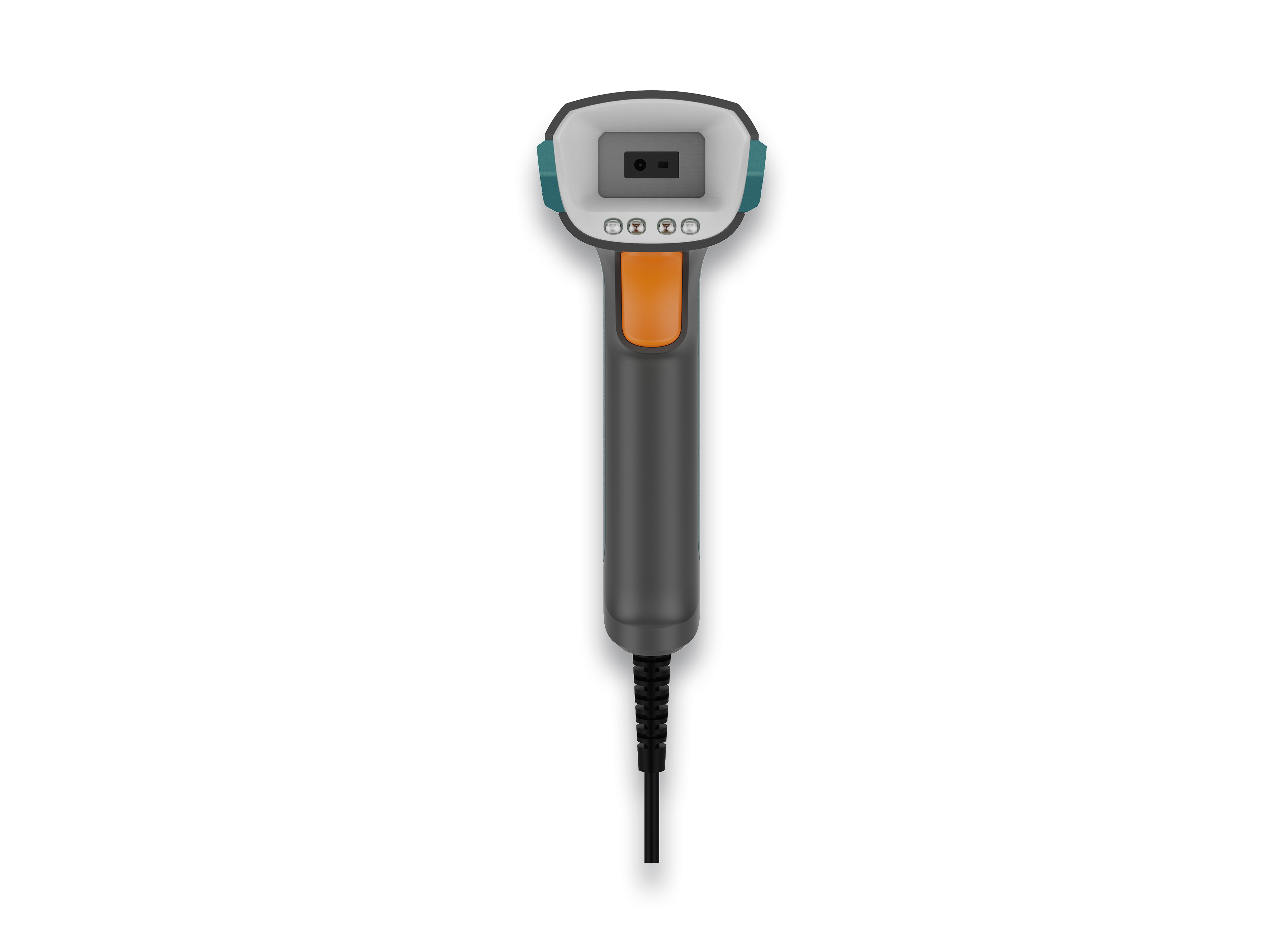

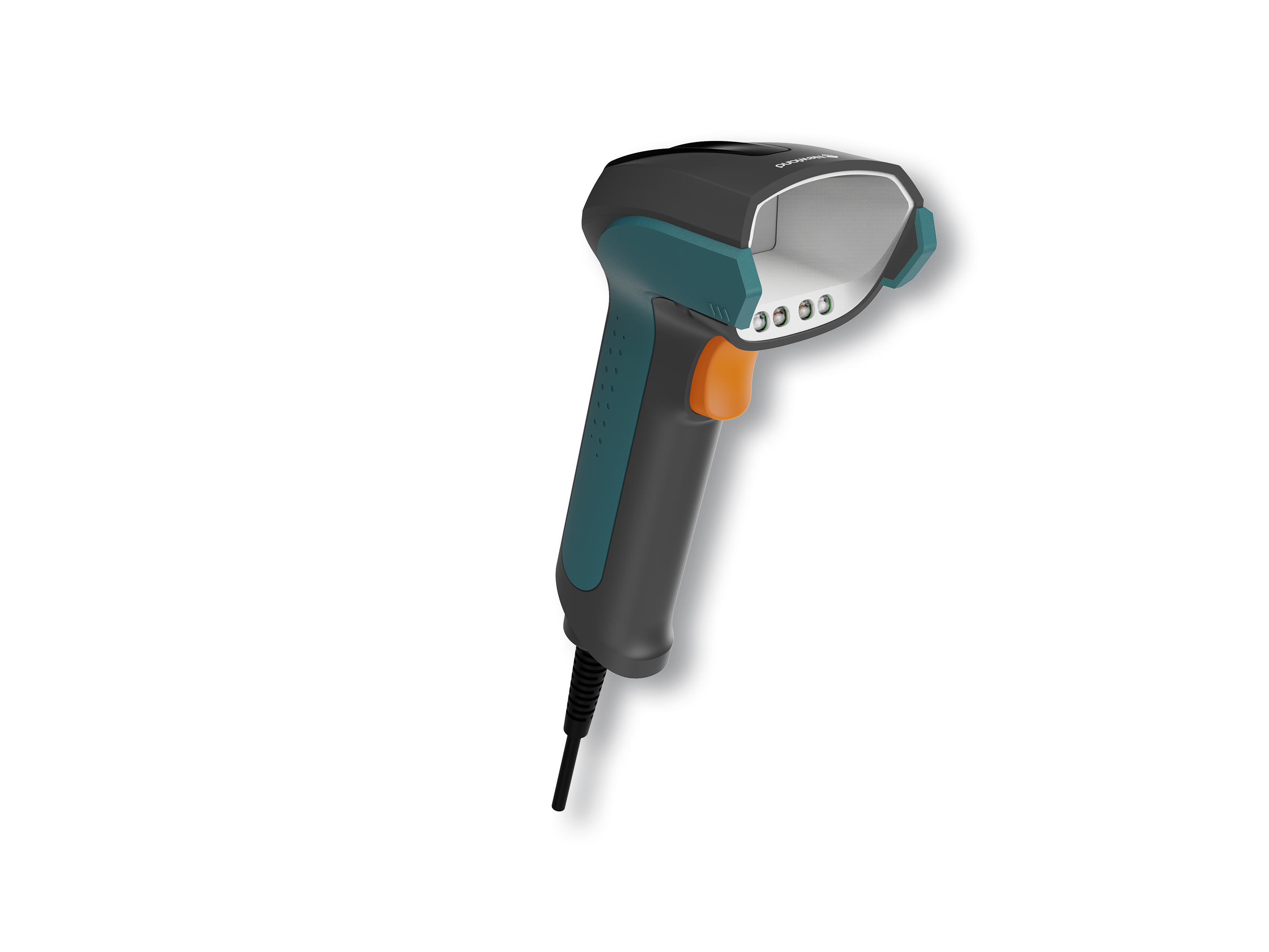

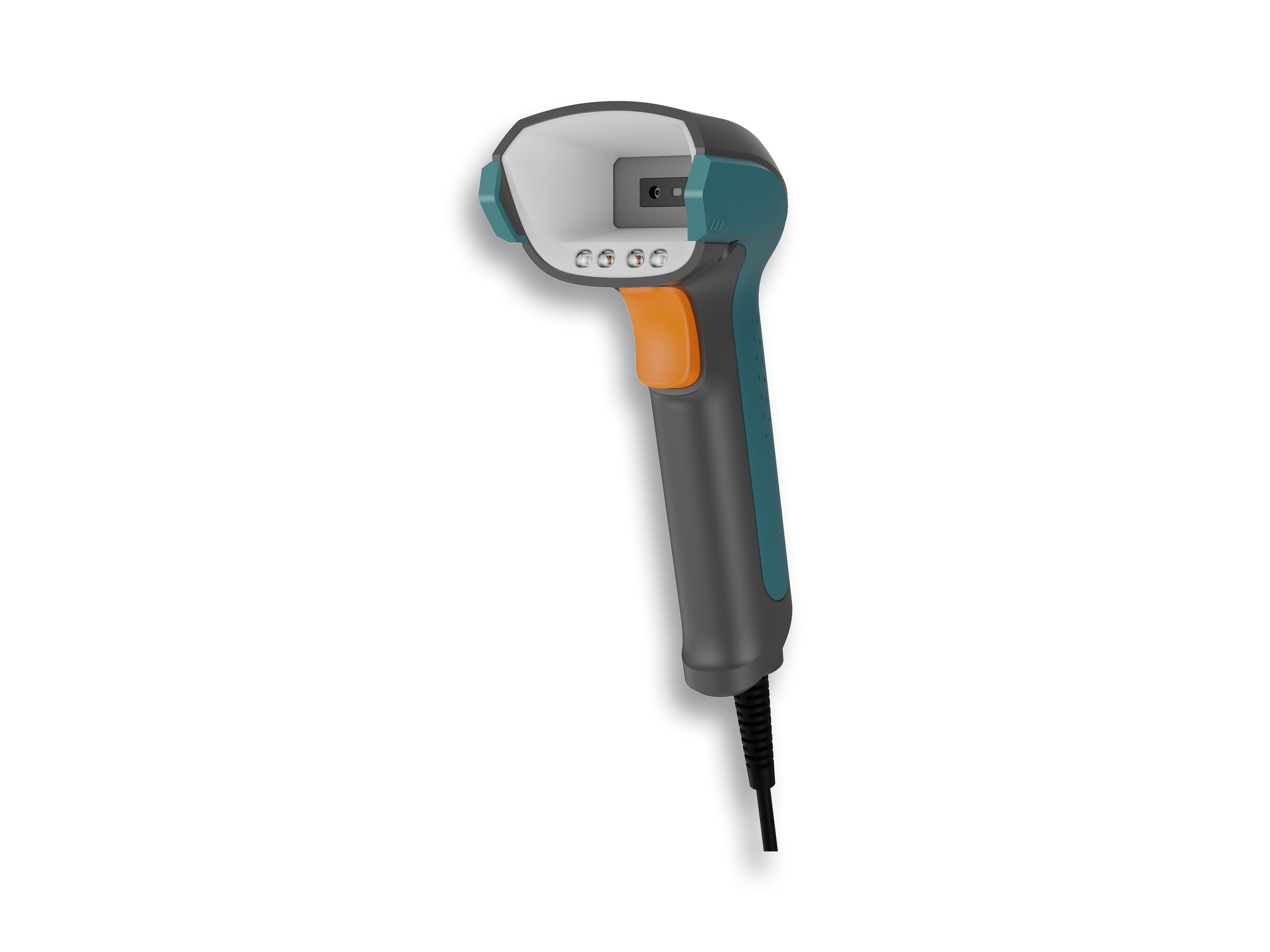

The NLS-NVH220, built into an IP64-sealed and can withstand repeated falls from 1.8 meters to the ground, with excellent reliability and stability.
Performance | Image Sensor | 1280 × 960 CMOS | |
| Illumination | Direct: white & red light LED; Diffuse: Ring of blue LEDs; LED 532nm |
||
| Symbologies | 2D: QR Code, PDF417, Micro QR, Data Matrix, AZTEC.1D:EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, Code11, COOP25, GS1-128(UCC/EAN-128), ITF-6, ITF-14, AIM128, ISBT128, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, MSI Plessey, Code 39, Plessey, Deutsche 14, Deutsche 12. |
||
| Resolution | ≥3mil | ||
| Typical Depth of Field | EAN-13(13mil) : 25mm-160mm Code 39(5mil) : 40mm-100mm Code 39(20mil) : 35mm-210mm Data Matrix(10mil) : 0mm-125mm QR Code(20mil) : 20mm-180mm |
||
| Scan Angle | Roll: 360°, Pitch: ±50°, Skew: ±50° | ||
| Min. Symbol Contrast | 20% | ||
Physical | Dimensions (L×W×H) | 67(W)×86(D)×170(H) mm | |
| Weight | 165g | ||
| Notification | Beep, LED indicator, Vibrator | ||
| Current | operating(typical) : 320mA operating(max.) : 480mA |
||
| Interfaces | USB, RS232, PS/2 | ||
Environmental | Operating Temperature | -20°C to 50°C(-4°F to 122°F) | |
| Storage Temperature | -40°C to 70°C(-40°F to 158°F) | ||
| Humidity | 5% to 95% (non-condensing) | ||
| ESD | ±16 KV (air discharge); ±8 KV (direct discharge) | ||
| Drop | 1.8m | ||
| Sealing | IP64 | ||
Certifications | Certifications | FCC, CE, ROHS, IEC62471, BIS, KC | |
| Image Sensor | |
|---|---|
| 1280 × 960 CMOS | |
| Illumination | |
|---|---|
| Direct: white & red light LED; Diffuse: Ring of blue LEDs; LED 532nm |
|
| Symbologies | |
|---|---|
| 2D: QR Code, PDF417, Micro QR, Data Matrix, AZTEC.1D:EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, Code11, COOP25, GS1-128(UCC/EAN-128), ITF-6, ITF-14, AIM128, ISBT128, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, MSI Plessey, Code 39, Plessey, Deutsche 14, Deutsche 12. |
|
| Resolution | |
|---|---|
| ≥3mil | |
| Typical Depth of Field | |
|---|---|
| EAN-13(13mil) : 25mm-160mm Code 39(5mil) : 40mm-100mm Code 39(20mil) : 35mm-210mm Data Matrix(10mil) : 0mm-125mm QR Code(20mil) : 20mm-180mm |
|
| Scan Angle | |
|---|---|
| Roll: 360°, Pitch: ±50°, Skew: ±50° | |
| Min. Symbol Contrast | |
|---|---|
| 20% | |
| Dimensions (L×W×H) | |
|---|---|
| 67(W)×86(D)×170(H) mm | |
| Weight | |
|---|---|
| 165g | |
| Notification | |
|---|---|
| Beep, LED indicator, Vibrator | |
| Current | |
|---|---|
| operating(typical) : 320mA operating(max.) : 480mA |
|
| Interfaces | |
|---|---|
| USB, RS232, PS/2 | |
| Operating Temperature | |
|---|---|
| -20°C to 50°C(-4°F to 122°F) | |
| Storage Temperature | |
|---|---|
| -40°C to 70°C(-40°F to 158°F) | |
| Humidity | |
|---|---|
| 5% to 95% (non-condensing) | |
| ESD | |
|---|---|
| ±16 KV (air discharge); ±8 KV (direct discharge) | |
| Drop | |
|---|---|
| 1.8m | |
| Sealing | |
|---|---|
| IP64 | |
| Certifications | |
|---|---|
| FCC, CE, ROHS, IEC62471, BIS, KC | |
