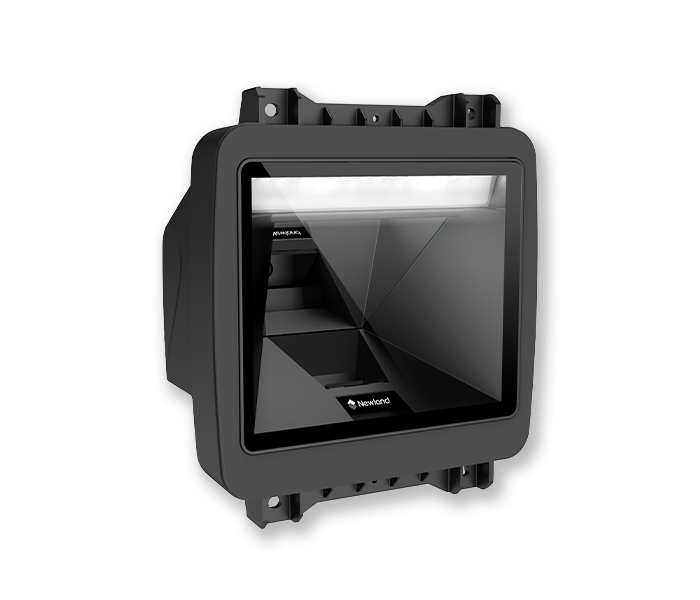

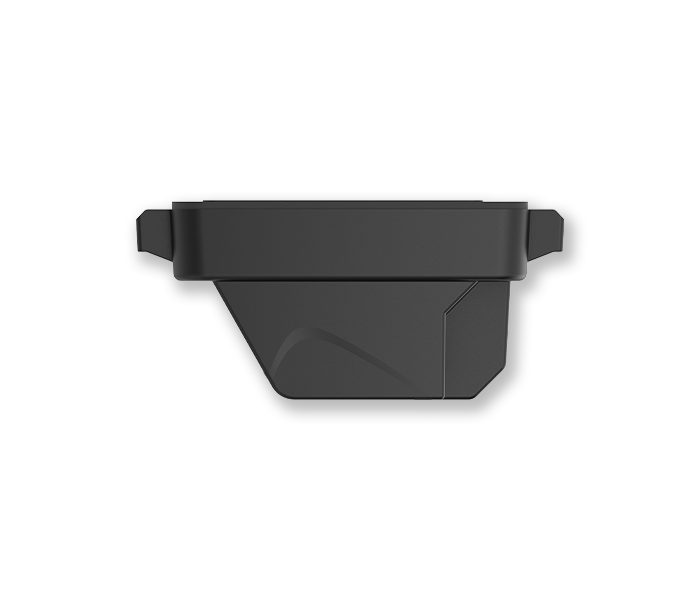

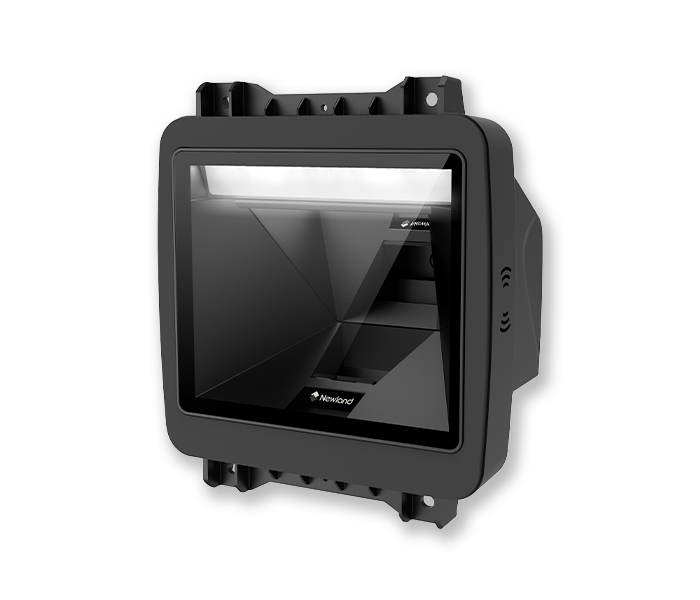

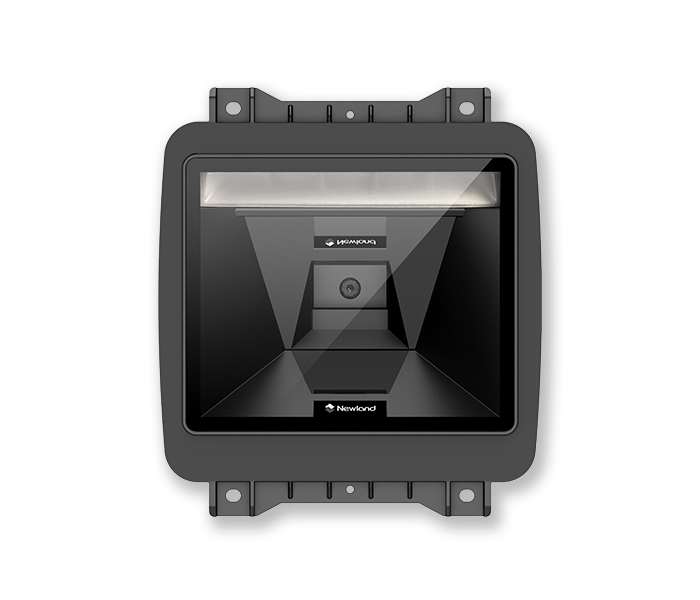

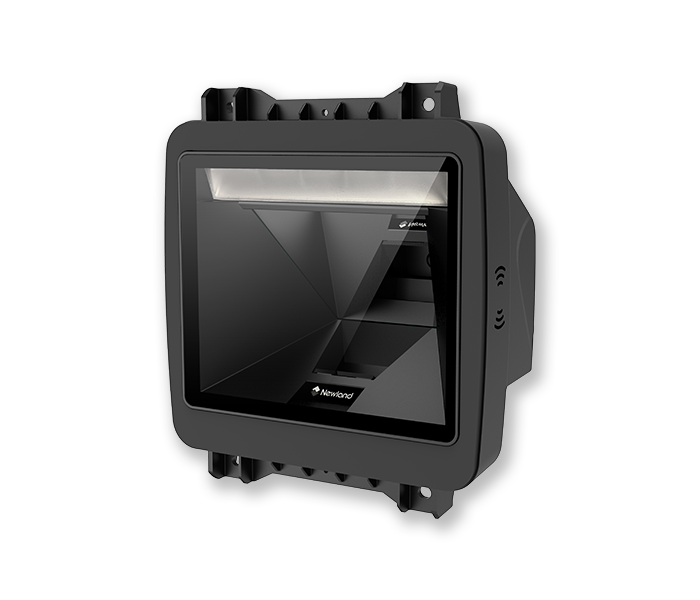

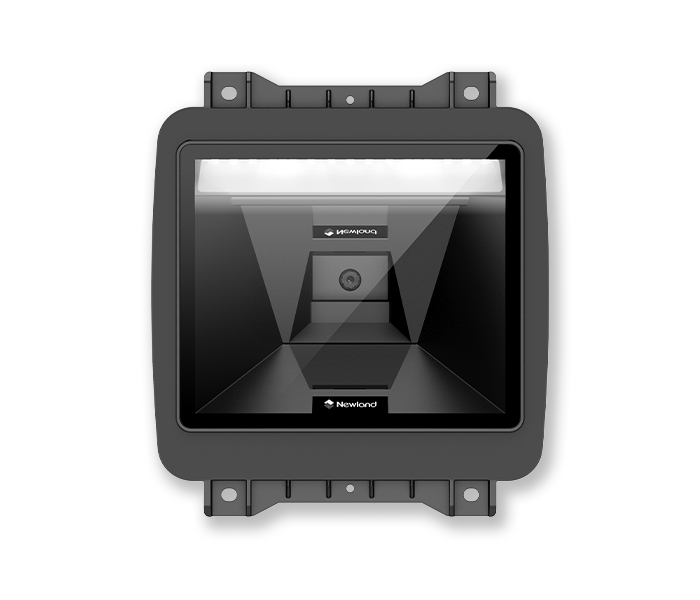

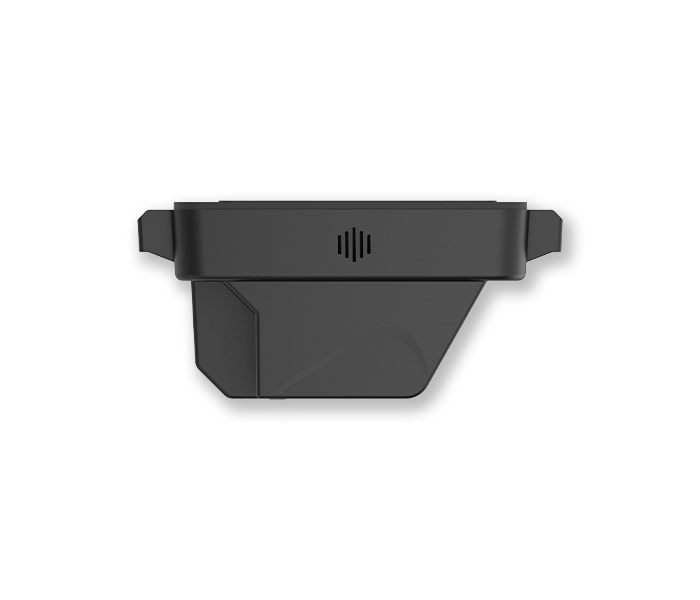

FM80 Fixed Mount

Product specifications
  • Decode Capability
    1D, 2D
  • Form Factor
    All-in-One
  • Interface
    RS-232, USB
  • Illumination
    3000K white LED
  • Dimension
    149×78.5×166.5mm
  • Weight
    455g
Features
  • CMOS
    CMOS
  • 1D Barcode
    1D Barcode
  • 2D Barcode
    2D Barcode
  • USB
    USB
Vertical
  • Retail
    Retail
  • Kiosk
    Kiosk
  • Voting machine
    Voting machine
  • Self Service&Kiosk
    Self Service&Kiosk
  • Features
  • Specifications
  • Downloads
  • Accessories
Features
  • Superior Scanning Performance

  • Armed with Newland’s UMIG + AIBD technology, this scanner can scan 1D and 2D barcodes and delivers stunning performance on decoding the wrinkled, reflective and curved barcodes.

  • Powerful OCR Recognition Capability

  • Equipped with advanced OCR technology, the scanner is ideal for applications requiring accurate data capture from IDs and documents. It instantly scan sand extracts text with high accuracy.

  • Advanced Multi-core Processing Platform

  • Integrated with a multi-core processing platform, theNLS-FM80offerspowerful computing capabilities, ensuring faster and more stable decoding performance.

  • Multiple Status indicators

  • 6kinds of status indicators show current working status of the scanner, including decoding, configuration, communication and abnormal status.

  • Advanced Sense Mode

  • The scanner activates a decode session every time it detects a barcode presented to it, and the target barcode shown in the window will not be read repeatedly.

  • High Motion Tolerance

  • With high motion tolerance, the scanner can quickly capture moving goods, which greatly enhances efficiency.

Specifications
Performance
Image Sensor 1280 * 1088 CMOS
Illumination 3000K White LED
Symbologies 1D: Code11,Code128,Code39,GS1-128(UCC/EAN128),AIM128,ISBT128, CodaBar,Code93,UPC-A/UPC-E,Coupon,EAN-13,EAN-8,ISSN,ISBN, Interleaved 2/ 5,Matrix 2/5,Industrial 2/5,
ITF-14,ITF-6,Standard 2/5, China post 25,MSI-Plessey,Plessey,GS1 Composite,GS1 Databar
(RSS)
2D: QR,DataMatrix, PDF417,Aztec
OCR: Passport OCR, Chinese ID Card, ChinaTravel Permit OCR
Digimarc: Digital watermark technology
Resolution ≥3mil (1D)
Typical Depth of Field EAN-13: 50mm-80mm (5mil)
EAN-13: 0mm-130mm (13mil)
Scan Angle Roll: 360°, Pitch: ±50°, Skew: ±50°
Min. Symbol Contrast 15% (Code 128 10mil)
Field of View Horizontal 42.4°, Vertical 36°
Physical
Dimensions (L×W×H) 149 (W)×78.5 (D)×166.5 (H)mm
Weight 455g
Notification Speaker, LED
Operating Voltage 5VDC±5%
Current@5VDC Operating: 280mA (typical), 800mA (max.)
Idle: 155mA
Interfaces RS-232, USB
Environmental
Operating Temperature -20℃ to 50℃ (-4°F to 122°F)
Storage Temperature -40℃ to 70℃ (-40°F~158°F)
Humidity 5% to 95% (non-condensing)
ESD ±15 KV (air discharge); ±8 KV (direct discharge)
Sealing IP52
Certifications
FCC Part15 Class B, CE EMC Class B, RoHS
Accessories
Standard 2m USB data cable, sed to connect the scanner to a host device.
Optional DC5V power adapter to power the scanner.
Performance
Image Sensor
1280 * 1088 CMOS
Illumination
3000K White LED
Symbologies
1D: Code11,Code128,Code39,GS1-128(UCC/EAN128),AIM128,ISBT128, CodaBar,Code93,UPC-A/UPC-E,Coupon,EAN-13,EAN-8,ISSN,ISBN, Interleaved 2/ 5,Matrix 2/5,Industrial 2/5,
ITF-14,ITF-6,Standard 2/5, China post 25,MSI-Plessey,Plessey,GS1 Composite,GS1 Databar
(RSS)
2D: QR,DataMatrix, PDF417,Aztec
OCR: Passport OCR, Chinese ID Card, ChinaTravel Permit OCR
Digimarc: Digital watermark technology
Resolution
≥3mil (1D)
Typical Depth of Field
EAN-13: 50mm-80mm (5mil)
EAN-13: 0mm-130mm (13mil)
Scan Angle
Roll: 360°, Pitch: ±50°, Skew: ±50°
Min. Symbol Contrast
15% (Code 128 10mil)
Field of View
Horizontal 42.4°, Vertical 36°
Physical
Dimensions (L×W×H)
149 (W)×78.5 (D)×166.5 (H)mm
Weight
455g
Notification
Speaker, LED
Operating Voltage
5VDC±5%
Current@5VDC
Operating: 280mA (typical), 800mA (max.)
Idle: 155mA
Interfaces
RS-232, USB
Environmental
Operating Temperature
-20℃ to 50℃ (-4°F to 122°F)
Storage Temperature
-40℃ to 70℃ (-40°F~158°F)
Humidity
5% to 95% (non-condensing)
ESD
±15 KV (air discharge); ±8 KV (direct discharge)
Sealing
IP52
Certifications
FCC Part15 Class B, CE EMC Class B, RoHS
Accessories
Standard
2m USB data cable, sed to connect the scanner to a host device.
Optional
DC5V power adapter to power the scanner.
