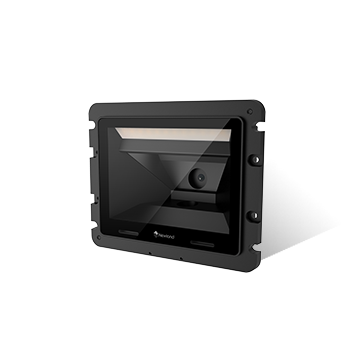

FM3280 Fixed Mount

Product specifications

Decode Capability
1D, 2D, Postal, OCR
Form Factor
All-in-One
Interface
RS-232, USB, RS-485, Wiegand
Illumination
White LED
Dimension
78.7 x 47.7 x 67.7mm
Weight
132g

Features

2D
1D Barcode
RS232
USB
CMOS
NFC
IP67

Vertical

Retail
Kiosk

Features
Specifications
Downloads
Accessories

Features

Excellent Reading Performance

Armed with Newland’s sixth-generation of technology, this scanner excels at reading printed and on-screen barcodes containing large amounts of data, special for low-quality printed barcodes

IP67-rated Sealing

An IP67-rated seal renders the scanner impervious to dust, water and other contaminant.

IR/Light Triggers

The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.

Optional NFC Function

The scanner supports the NFC function.

Support Wiegand and RS-485 Interface

Optional Wiegand and RS-485 interfaces are provided to meet diverse customers’ needs.

Wide Voltage Input

Support voltage ranges from 5 ~ 24VDC

Specifications

Performance	Image Sensor	1280 * 1088 CMOS
	Illumination	3000K white LED
	Symbologies	2D: PDF417, Data Matrix, QR Code, Micro QR, Aztec, etc 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Interleaved 2 of 5, Code 128 (FNC1), Code 93, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), MSI Plessey, Code 39 (Code 39 FULL ASCII), Plessey, etc Postal: USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal, Japan Post OCR: Passport OCR, Chinese ID Card, China Travel Permit OCR
	Resolution	≥3mil (1D)
	Typical Depth of Field	EAN-13 (13mil): 0-290mm Code 39 (20mil): 15-310mm Code 128(10mil): 0-280mm QR Code (20mil): 0-270mm
	Min. Symbol Contrast	25%
	Field of View	Vertical 66°，Horizontal 58.2°
	Scan Window	45mm×45mm
	Scan Modes	Sense mode, Continuous mode, Command mode
	Scan Angle	Roll: 360°, Pitch: ±60°, Skew: ±60°

Physical	Dimensions (L×W×H)	78.7(W)×47.7(D)×67.7(H)mm (max.) (without cable)
	Weight	132g
	Interfaces	RS-232, USB, RS-485, Wiegand
	Operating Voltage	5-24VDC±5%
	Current@5VDC	NFC Version Operating (RMS): 220mA Idle: 175mA Non-NFC Version Operating (RMS): 172mA Idle: 118mA
	Notification	Beeper, multi-colored LED indicator

NFC (optional)	Reading Distance	0-30mm
	Supported Functions	Support reading card number and card type, reading and writing sectors, increasing and decreasing values, reading and writing files, file operations, key operations, contactless CPU card operation (ISO14443 Type A) and APDU.
	Supported Cards	ID card, NFC-equipped phone, Mifare Classic, Mifare Plus, Mifare Ultralight/C/EV1, Mifare Desfire, CPU card, NTAG2x series, NTAG42x series, ICODE 2, Type B card，Felica card.

Environmental	Operating Temperature	-20℃ to 60℃ (-4°F to 140°F)
	Storage Temperature	-40℃ to 85℃ (-40°F to 185°F)
	Humidity	5%~95% (non-condensing)
	ESD	±15kV (air discharge) ±8kV (direct discharge)
	Sealing	IP67 (not including interface)

Accessories	Cable	USB cable used to connect the scanner to a host device. RS-232 cable used to connect the scanner to a host device. RS-485 and Wiegand cables used to connect the scanner to a host device.
	Power Adapter	DC5V power adapter to provide power for the scanner with RS-232 cable.

Performance

Image Sensor
1280 * 1088 CMOS

Illumination
3000K white LED

Symbologies
2D: PDF417, Data Matrix, QR Code, Micro QR, Aztec, etc 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Interleaved 2 of 5, Code 128 (FNC1), Code 93, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), MSI Plessey, Code 39 (Code 39 FULL ASCII), Plessey, etc Postal: USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal, Japan Post OCR: Passport OCR, Chinese ID Card, China Travel Permit OCR

Symbologies

2D: PDF417, Data Matrix, QR Code, Micro QR, Aztec, etc
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Interleaved 2 of 5, Code 128 (FNC1), Code 93, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), MSI Plessey, Code 39 (Code 39 FULL ASCII), Plessey, etc
Postal: USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal, Japan Post
OCR: Passport OCR, Chinese ID Card, China Travel Permit OCR

Resolution
≥3mil (1D)

Typical Depth of Field
EAN-13 (13mil): 0-290mm Code 39 (20mil): 15-310mm Code 128(10mil): 0-280mm QR Code (20mil): 0-270mm

Min. Symbol Contrast
25%

Field of View
Vertical 66°，Horizontal 58.2°

Scan Window
45mm×45mm

Scan Modes
Sense mode, Continuous mode, Command mode

Scan Angle
Roll: 360°, Pitch: ±60°, Skew: ±60°

Physical

Dimensions (L×W×H)
78.7(W)×47.7(D)×67.7(H)mm (max.) (without cable)

Weight
132g

Interfaces
RS-232, USB, RS-485, Wiegand

Operating Voltage
5-24VDC±5%

Current@5VDC
NFC Version Operating (RMS): 220mA Idle: 175mA Non-NFC Version Operating (RMS): 172mA Idle: 118mA

Notification
Beeper, multi-colored LED indicator

NFC (optional)

Reading Distance
0-30mm

Supported Functions
Support reading card number and card type, reading and writing sectors, increasing and decreasing values, reading and writing files, file operations, key operations, contactless CPU card operation (ISO14443 Type A) and APDU.

Supported Cards
ID card, NFC-equipped phone, Mifare Classic, Mifare Plus, Mifare Ultralight/C/EV1, Mifare Desfire, CPU card, NTAG2x series, NTAG42x series, ICODE 2, Type B card，Felica card.

Environmental

Operating Temperature
-20℃ to 60℃ (-4°F to 140°F)

Storage Temperature
-40℃ to 85℃ (-40°F to 185°F)

Humidity
5%~95% (non-condensing)

ESD
±15kV (air discharge) ±8kV (direct discharge)

Sealing
IP67 (not including interface)

Accessories

Cable
USB cable used to connect the scanner to a host device. RS-232 cable used to connect the scanner to a host device. RS-485 and Wiegand cables used to connect the scanner to a host device.

Power Adapter
DC5V power adapter to provide power for the scanner with RS-232 cable.
