Armed with Newland’s UIMG+AIBD technology, this scanner can scan 1D and 2D barcodes and delivers stunning performance on decoding the wrinkled, reflective and curved barcodes.
Equipped with advanced OCR technology, the scanner is ideal for applications requiring accurate data capture from IDs and documents. It instantly scans and extracts text with high accuracy.

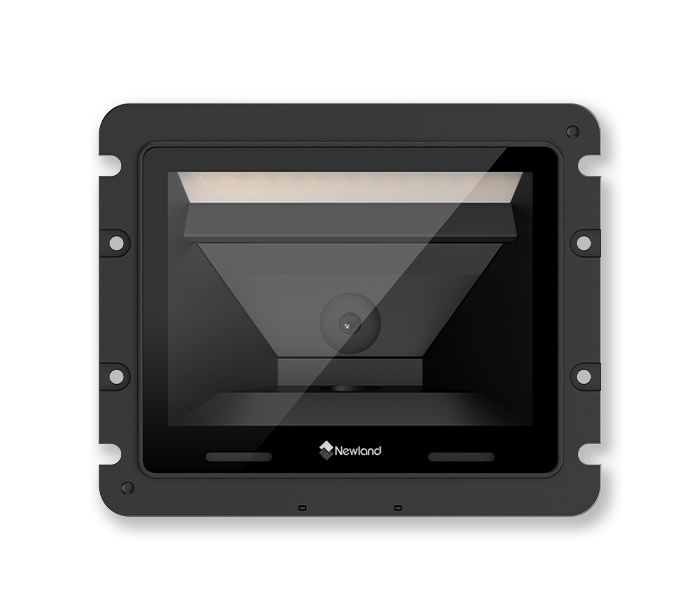

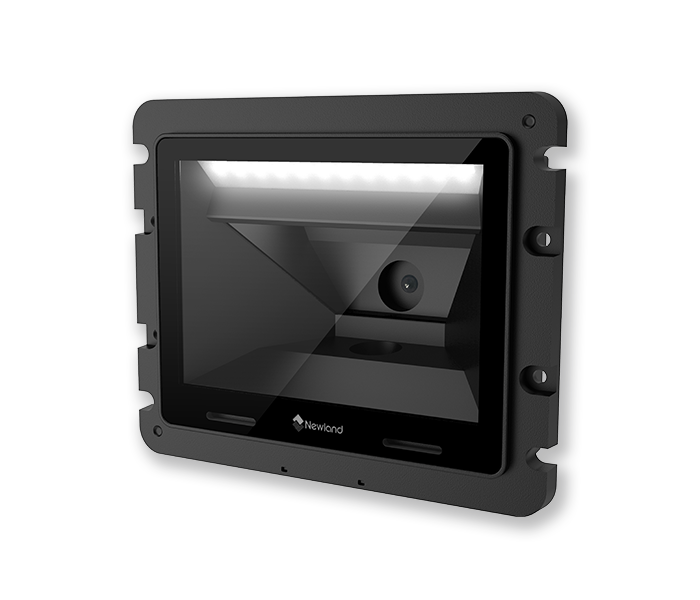

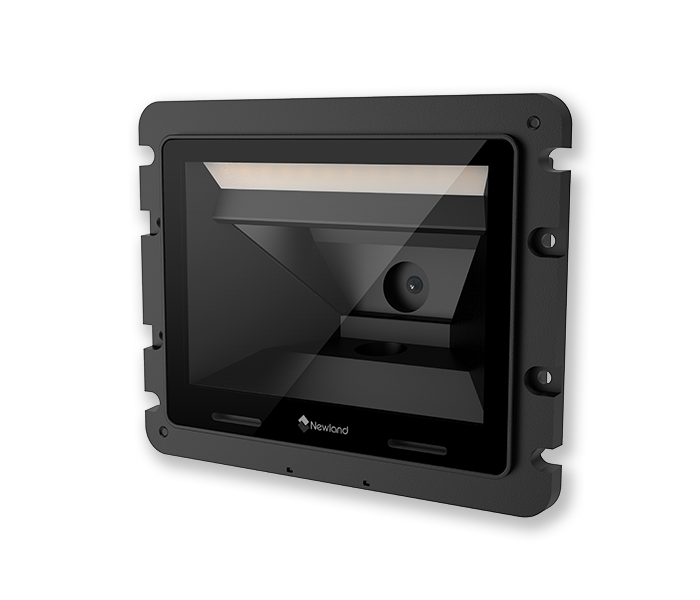

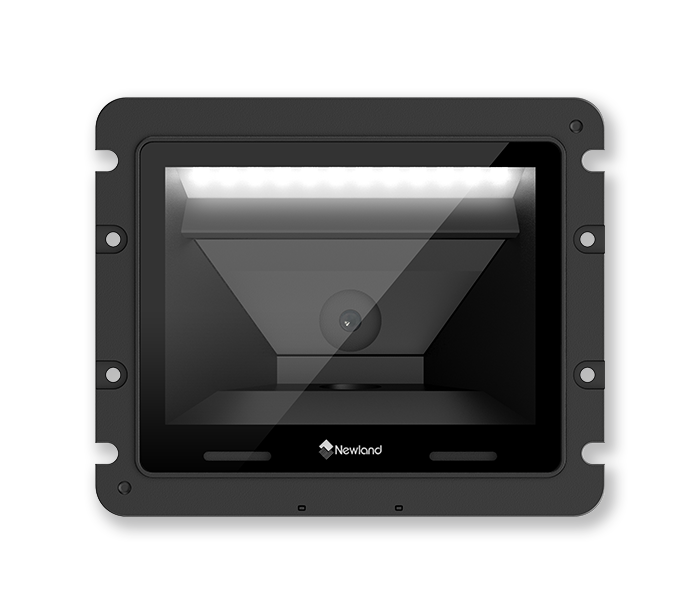

Integrated with a multi-core processing platform, the NLS-FM60 offers powerful computing capabilities, ensuring faster and more stable decoding performance.
Featuring wide-viewing angle, the scanner will conduct quick scanning when goods come closer to the scan window.
6 kinds of status indicators show current working status of the scanner, including decoding, configuration, communication and abnormal status.
With high motion tolerance, the scanner can quickly capture moving goods, which greatly enhances efficiency.
Performance | Image Sensor | 1280 * 800 CMOS | |
| Illumination | 5000K White LED | ||
| Symbologies | 1D: Code 128, EAN-8, EAN-13, UPC-E, UPC-A, Coupon, Interleaved 2/5, ITF-14, ITF-6, Matrix 2/5,Code 39, Codabar, Code 93, China Post 2/5, UCC/EAN-128, GS1 Databar, GS1 Composite,Code 11, ISBN, ISSN, Industrial 2/5, Standard 2/5, Plessey, MSI-Plessey, AIM 128,ISBT 128, Code49, Code 16K,Deunsch14,Deutsch12 2D: PDF417, Micro PDF417, QR / Micro QR, DataMatrix, Aztec, Chinese Sensible Code, Maxicode,GridMatrix, Code One, DotCode Postal: USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX, Australian Postal, JapanesePost OCR: Passport OCR, Chinese ID Card, China Travel Permit OCR Digimarc: Digital watermark technology |
||
| Resolution | ≥4mil (1D) | ||
| Typical Depth of Field | EAN-13: 0mm-180mm (13mil) QR Code: 0mm-130mm (15mil) |
||
| Scan Angle | Roll: 360°, Pitch: ±55°, Skew: ±50° | ||
| Min. Symbol Contrast | ≥25% (Code 128 10mil) | ||
| Field of View | Horizontal 65.6°, Vertical 44.6° | ||
Physical | Dimensions (W×H×D) | 114×46×94mm (max.) | |
| Weight | 145g | ||
| Notification | Beep, LED | ||
| Operating Voltage | 5-12 VDC±5% | ||
| Current | Operating: 195.8mA (typical), 407mA (max.) Idle: 120mA |
||
| Interfaces | RS-232, USB | ||
Environmental | Operating Temperature | -20°C to 50°C (-4°F to 122°F) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | ||
| Humidity | 5% to 95% (non-condensing) | ||
| Sealing | IP52 | ||
Accessories | Cable | USB: Used to connect the scanner to a host device. | |
Certifications | FCC Part 15 Class B, CE EMC Class B, RoHS | ||
| Image Sensor | |
|---|---|
| 1280 * 800 CMOS | |
| Illumination | |
|---|---|
| 5000K White LED | |
| Symbologies | |
|---|---|
| 1D: Code 128, EAN-8, EAN-13, UPC-E, UPC-A, Coupon, Interleaved 2/5, ITF-14, ITF-6, Matrix 2/5,Code 39, Codabar, Code 93, China Post 2/5, UCC/EAN-128, GS1 Databar, GS1 Composite,Code 11, ISBN, ISSN, Industrial 2/5, Standard 2/5, Plessey, MSI-Plessey, AIM 128,ISBT 128, Code49, Code 16K,Deunsch14,Deutsch12 2D: PDF417, Micro PDF417, QR / Micro QR, DataMatrix, Aztec, Chinese Sensible Code, Maxicode,GridMatrix, Code One, DotCode Postal: USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX, Australian Postal, JapanesePost OCR: Passport OCR, Chinese ID Card, China Travel Permit OCR Digimarc: Digital watermark technology |
|
| Resolution | |
|---|---|
| ≥4mil (1D) | |
| Typical Depth of Field | |
|---|---|
| EAN-13: 0mm-180mm (13mil) QR Code: 0mm-130mm (15mil) |
|
| Scan Angle | |
|---|---|
| Roll: 360°, Pitch: ±55°, Skew: ±50° | |
| Min. Symbol Contrast | |
|---|---|
| ≥25% (Code 128 10mil) | |
| Field of View | |
|---|---|
| Horizontal 65.6°, Vertical 44.6° | |
| Dimensions (W×H×D) | |
|---|---|
| 114×46×94mm (max.) | |
| Weight | |
|---|---|
| 145g | |
| Notification | |
|---|---|
| Beep, LED | |
| Operating Voltage | |
|---|---|
| 5-12 VDC±5% | |
| Current | |
|---|---|
| Operating: 195.8mA (typical), 407mA (max.) Idle: 120mA |
|
| Interfaces | |
|---|---|
| RS-232, USB | |
| Operating Temperature | |
|---|---|
| -20°C to 50°C (-4°F to 122°F) | |
| Storage Temperature | |
|---|---|
| -40°C to 70°C (-40°F to 158°F) | |
| Humidity | |
|---|---|
| 5% to 95% (non-condensing) | |
| Sealing | |
|---|---|
| IP52 | |
| Cable | |
|---|---|
| USB: Used to connect the scanner to a host device. | |
| FCC Part 15 Class B, CE EMC Class B, RoHS | |
