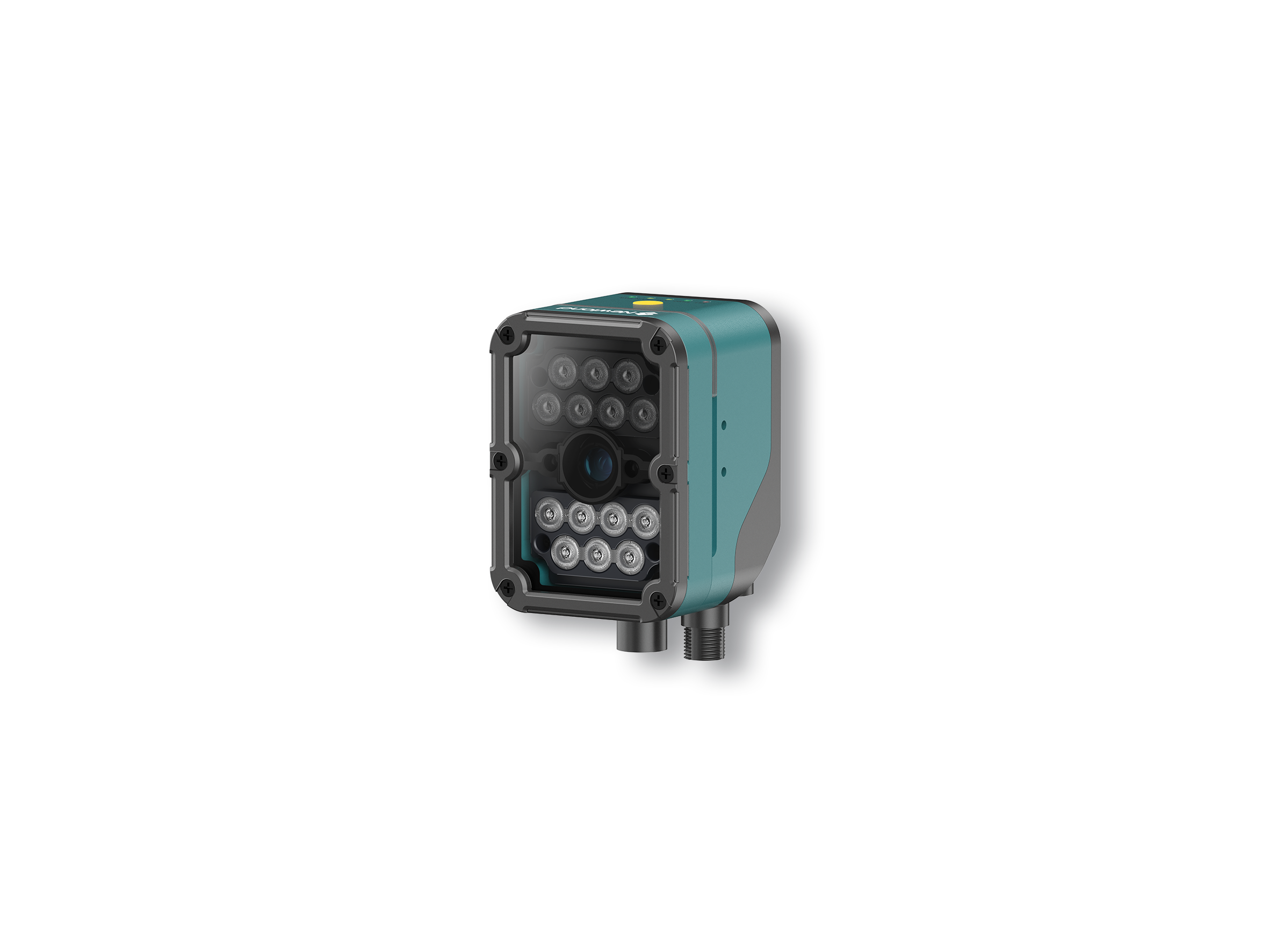

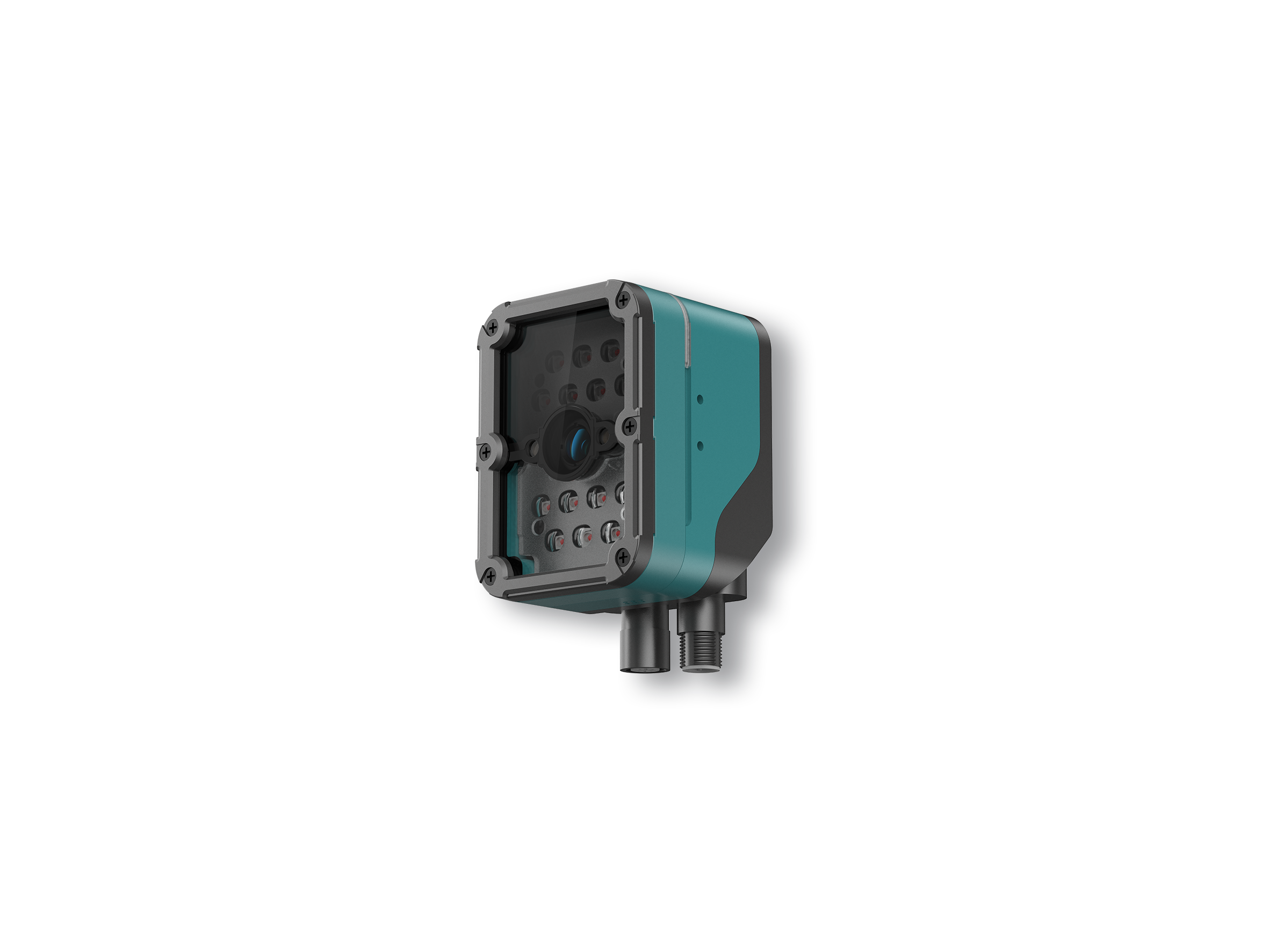

Soldier300 Industrial Scanner
-
Features
-
Specifications
-
Downloads
-
Accessories
A New Generation of Multi-core Processor Platform
Fast and rich configuration method
High Protection Industrial Structure Design
Multiple models meet multiple scenarios
Newly Upgraded Lighting System
Rich communication interface
Through the automatic focusing of the liquid lens, the High performance quad-core processor, embedded high performance image processing acceleration engine, combined with advanced multi-thread parallel decoding technology, single image decoding speed significantly improved, and can simultaneously process multiple images, supporting high frame speed scene applications, the highest decoding rate can reach 60 frames per second.
Through the software NSet, the scanner can be configured diversified, including networking, multi-code, communication and other functions, and equipped with a powerful AutoLearn self-learning function on the device and in the software, which can achieve one-click completion of image and focus settings, which greatly improves the convenience of barcode reader configuration.
It has a built-in IP67 seal, which is suitable for various complex environments and relatively compact industrial environ

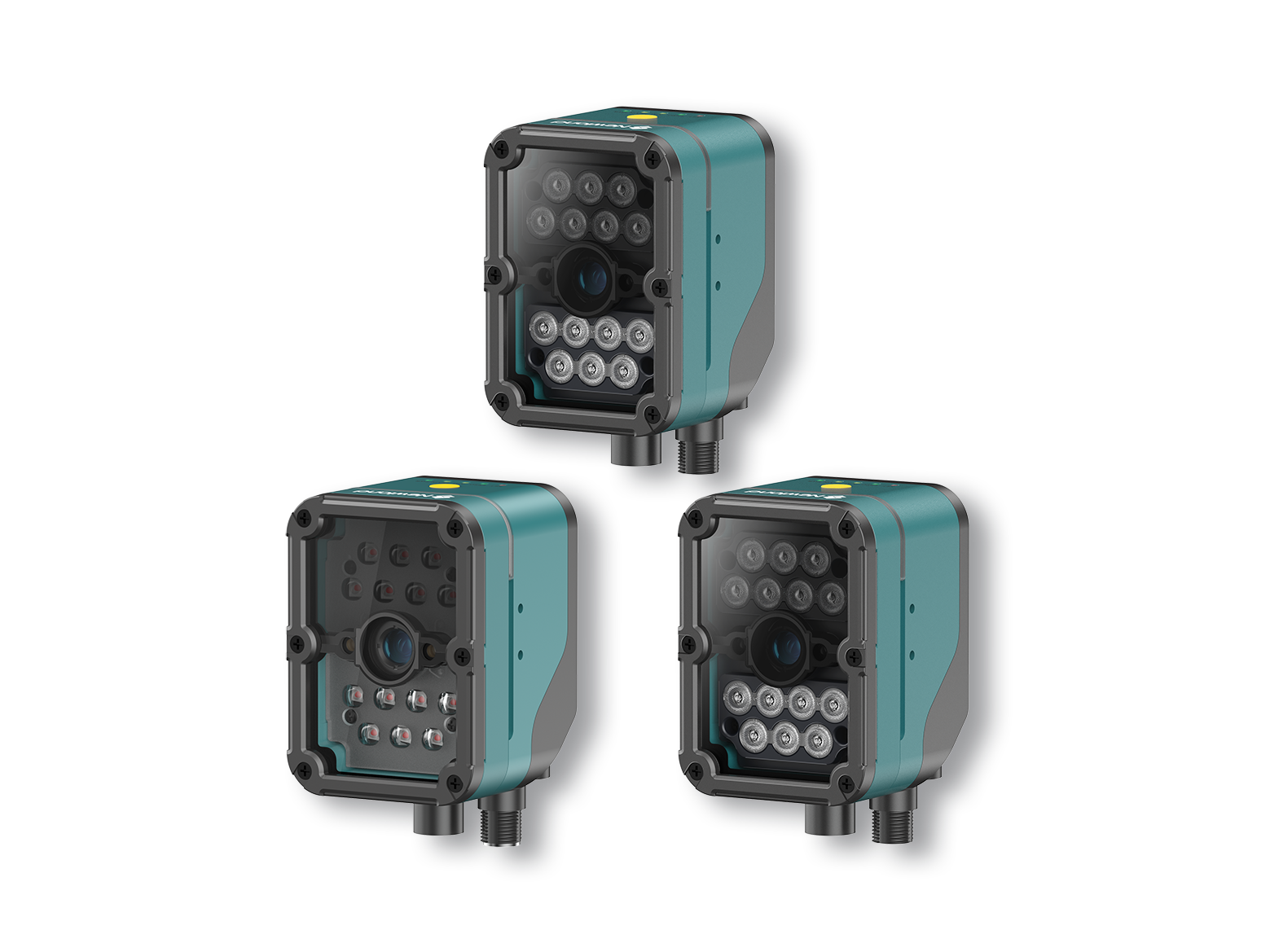

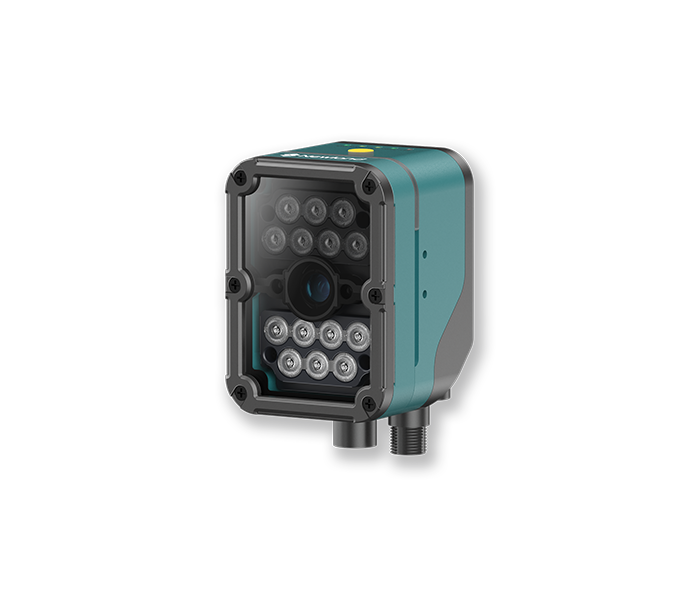

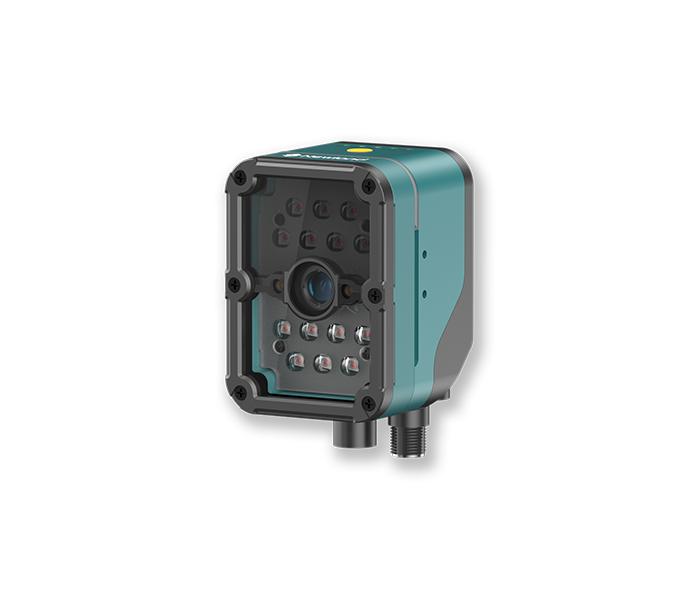

Providing N, W, S version which can meet the needs of application scenarios with large field of view, standard field of view and high precision. And the built-in liquid focusing lens can quickly complete the focusing operation.

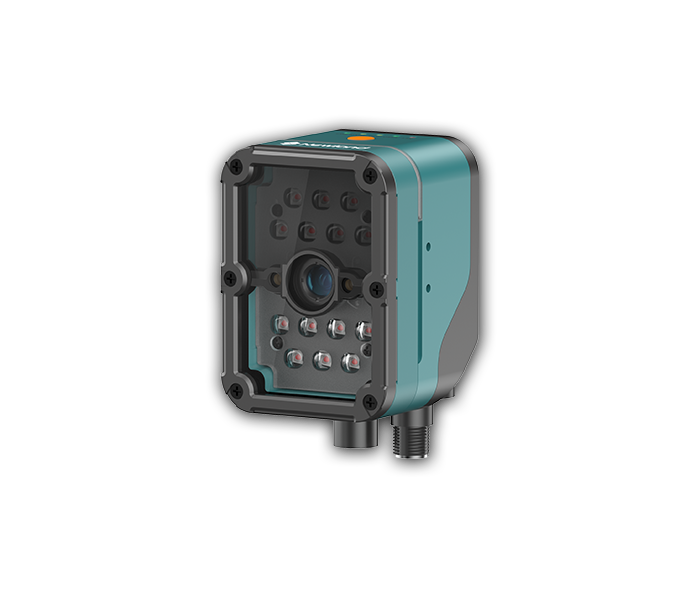

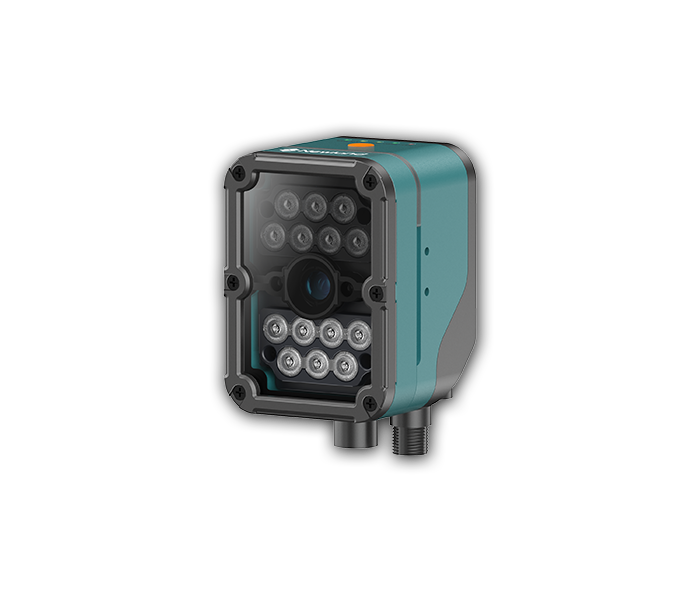

Integrated lighting source scheme, bright white light with area array red light, flexible sub-block lighting, can meet the needs of different application scenarios. At the same time, it includes accessories such as diffuser cover and polarizer, which realizes high-quality reflective scene reading ability.
Integrated RS-232/RS485/USB/Ethernet/Industrial Ethernet (Profinet, Ethernet/IP), support POE power supply and IO port input and output at the same time.
Performance | Main unit | Model Type: NLS-Soldier300W: Wide-field type NLS-Soldier300N: Standard type NLS-Soldier300S: Long-distance type |
|
Sensor | CMOS Image Sensor | ||
Number of pixels | 1920 × 1200 pixels | ||
Illumination | NLS-Soldier300W: 14 High-intensity red LED NLS-Soldier300N: 50 red dot matrix + 4 High-intensity white LED NLS-Soldier300S: 14 High-intensity red LED |
||
Polarising filter | NLS-Soldier300W: For part lighting(Standard) NLS-Soldier300N: For full lighting(Optional) NLS-Soldier300S: For part lighting(Standard) |
||
Effective focal length | NLS-Soldier300W: 6mm NLS-Soldier300N: 9mm NLS-Soldier300S: 15mm |
||
Aim | 2*circular laser | ||
Reading specifications | Supported symbol: 1D:EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, Plessey, Deutsche14, Deutsche12 2D:QR Code, Data Matrix, PDF417, Aztec Code, Micro QR. |
||
Minimum resolution | 1D: NLS-Soldier300W: 1.67mil NLS-Soldier300N: 1mil NLS-Soldier300S: 0.8mil 2D: NLS-Soldier300W: 3.33mil NLS-Soldier300N: 2.5mil NLS-Soldier300S: 2mil |
||
Reading distance | NLS-Soldier300W: 50 to 1000mm NLS-Soldier300N: 50 to 1000mm NLS-Soldier300S: 100 to 2000mm |
||
Motion Tolerance | 2m/s | ||
Min. Symbol Contrast | ≥15% |
Physical | Dimensions | 61(W)×52.1(D)×100.9(H) mm | |
Weight | 394.7g | ||
Prompt | Buzzer, pilot lamp | ||
Power voltage | 24VDC | ||
Current@24V DC | Rated power: 7.9W | ||
Standby current: 47mA | |||
Input | Maximum load current 15mA(Input:5V~30V); 2 inputs |
||
Output | Maximum load current 50mA(Input:≤30V); 2 outputs |
||
Communication Interface | RS-232, RS485(optional), TCP/IP, UDP, FTP, Modbus, Ethernet/IP, Profinet |
Environmental | Working temperature | -10℃~+50℃ | |
Ambient storage temperature | -40℃~+70℃ | ||
Relative humidity | 5%~95% (No condensation) | ||
Enclosure rating | IP67 |
Accessories | Cable | Ethernet cable, RS232+I/O cable | |
Adapter | Input 100~240V,output DC 24V/1.5A | ||
Others | Fixed bracket, RS485 cable (optional), Polarising filter (optional), Magnifying glass (optional) |
Certification | Certification | CE, FCC, ROHS 2.0, IEC62471, BIS |
Main unit | |
---|---|
Model Type: NLS-Soldier300W: Wide-field type NLS-Soldier300N: Standard type NLS-Soldier300S: Long-distance type |
Sensor | |
---|---|
CMOS Image Sensor |
Number of pixels | |
---|---|
1920 × 1200 pixels |
Illumination | |
---|---|
NLS-Soldier300W: 14 High-intensity red LED NLS-Soldier300N: 50 red dot matrix + 4 High-intensity white LED NLS-Soldier300S: 14 High-intensity red LED |
Polarising filter | |
---|---|
NLS-Soldier300W: For part lighting(Standard) NLS-Soldier300N: For full lighting(Optional) NLS-Soldier300S: For part lighting(Standard) |
Effective focal length | |
---|---|
NLS-Soldier300W: 6mm NLS-Soldier300N: 9mm NLS-Soldier300S: 15mm |
Aim | |
---|---|
2*circular laser |
Reading specifications | |
---|---|
Supported symbol: 1D:EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, Plessey, Deutsche14, Deutsche12 2D:QR Code, Data Matrix, PDF417, Aztec Code, Micro QR. |
Minimum resolution | |
---|---|
1D: NLS-Soldier300W: 1.67mil NLS-Soldier300N: 1mil NLS-Soldier300S: 0.8mil 2D: NLS-Soldier300W: 3.33mil NLS-Soldier300N: 2.5mil NLS-Soldier300S: 2mil |
Reading distance | |
---|---|
NLS-Soldier300W: 50 to 1000mm NLS-Soldier300N: 50 to 1000mm NLS-Soldier300S: 100 to 2000mm |
Motion Tolerance | |
---|---|
2m/s |
Min. Symbol Contrast | |
---|---|
≥15% |
Dimensions | |
---|---|
61(W)×52.1(D)×100.9(H) mm |
Weight | |
---|---|
394.7g |
Prompt | |
---|---|
Buzzer, pilot lamp |
Power voltage | |
---|---|
24VDC |
Current@24V DC | |
---|---|
Rated power: 7.9W |
Standby current: 47mA |
Input | |
---|---|
Maximum load current 15mA(Input:5V~30V); 2 inputs |
Output | |
---|---|
Maximum load current 50mA(Input:≤30V); 2 outputs |
Communication Interface | |
---|---|
RS-232, RS485(optional), TCP/IP, UDP, FTP, Modbus, Ethernet/IP, Profinet |
Working temperature | |
---|---|
-10℃~+50℃ |
Ambient storage temperature | |
---|---|
-40℃~+70℃ |
Relative humidity | |
---|---|
5%~95% (No condensation) |
Enclosure rating | |
---|---|
IP67 |
Cable | |
---|---|
Ethernet cable, RS232+I/O cable |
Adapter | |
---|---|
Input 100~240V,output DC 24V/1.5A |
Others | |
---|---|
Fixed bracket, RS485 cable (optional), Polarising filter (optional), Magnifying glass (optional) |
Certification | |
---|---|
CE, FCC, ROHS 2.0, IEC62471, BIS |
-
