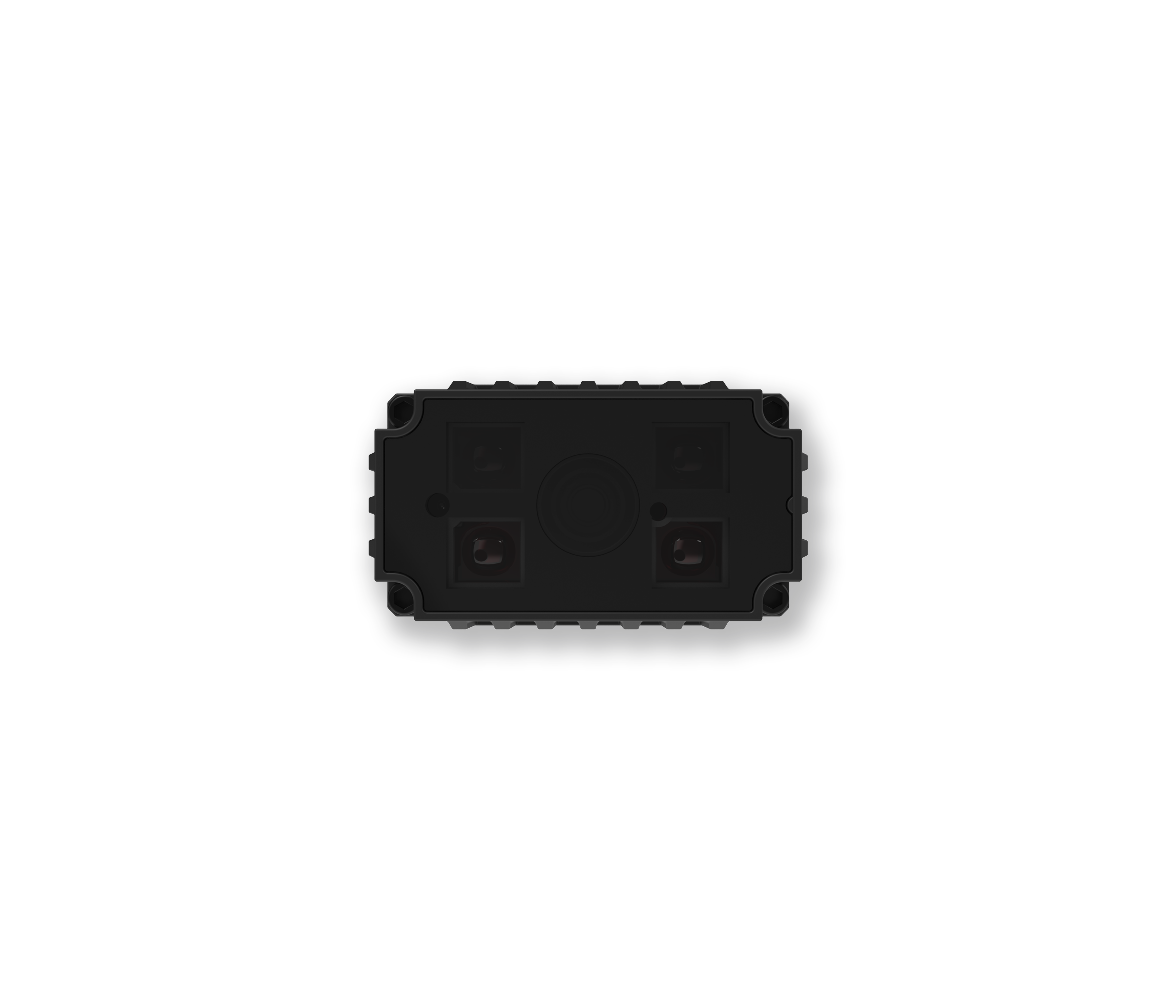

Soldier180 Industrial Scanner

Features

New Generation of AI Processor Platform

Integrated with advanced AI algorithms and ISP functionality, the NLS-Soldier180 delivers exceptional barcode reading performance in challenging industrial environments, including low-contrast, multi-code, and cluttered backgrounds, significantly enhancing decoding accuracy and stability.

Advanced Liquid Lens Autofocus Technology

With advanced liquid lens autofocus technology, the NLS-Soldier180 enables fast and precise focus control, offering high flexibility in reading.

Rich Communication Interface

NLS-Soldier180 integrates RS-232 and Ethernet interfaces (supporting Profinet, Ethernet/IP, and ModbusTCP), and includes two I/O ports for input and output.

Fast and Rich Configuration Method

Through the NSet software, the scanner can be configured with a variety of functions, including device grouping, multi-barcode output, script editing, and more. Equipped with powerful self-learning capabilities, the device enables one-click image and scanning setup, greatly simplifying scanner configuration.

High Protection Industrial Structure Design

Featuring an IP65-rated protection and a compact design, it is suitable for complex and space-constrained industrial environments.

Multiple Models for Diverse Scenarios

The Soldier 180N-P and Soldier 180S-P offer different angle options, both equipped with direct and polarized lighting for versatile illumination. Compatible with accessories such as magnifier, diffuser, and reflector, they are designed to meet a wide range of application needs.

Specifications

Performance	Model Type	Soldier180W: mega-pixel Sub model type: Soldier180W-SP: long-distance type Soldier180W-NP: standard type Soldier180E: 2 mega-pixel Sub model type: Soldier180E-SP: long-distance type Soldier180E-NP: standard type
	Sensor	CMOS image sensor
	Number of Pixels	Soldier180W: 1280 × 960 pixels Soldier180E: 1600 × 1200 pixels
	Focus	Liquid lens
	Illumination	Soldier180W/Soldier180E: 4 High-intensity red LEDs(Standard) Soldier180W: WhiteLED/blue LED/ultraviolet LED/infraredLED (Optional)
	Polarized Filter	Half polarized(standard)
	Effective Focal Length	13.7mm(Soldier180W-SP/Soldier180E-SP) 6.8mm(Soldier180W-NP/Soldier180E-NP)
	Field of View	Horizontal 15.2°(Soldier180W-SP/Soldier180E-SP) Vertical 11.3°(Soldier180W-NP/Soldier180E-NP)
	Supported symbol	1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,Codabar, Code128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39,Code 11,MSI-Plessey, Plessey, Deutsche14, Deutsche12 2D: QR Code, Data Matrix, PDF417, Aztec Code, Micro QR
	Minimum Resolution	Soldier180W: 1D: 0.8mil(Soldier180W-SP), 1mil(Soldier180W-NP) 2D: 2mil(Soldier180W-SP), 2mil(Soldier180W-NP) Soldier180E: 1D: 0.613mil(Soldier180E-SP), 0.68mil(Soldier180E-NP) 2D: 0.8mil(Soldier180E-SP), 1.3mil(Soldier180E-NP)
	Reading Distance	Soldier180W: 40 to 1500mm(Soldier180W-SP), 40 to 1000mm(Soldier180W-NP) Soldier180E: 40 to 2000mm(Soldier180E-SP), 40 to 1000mm(Soldier180E-NP)
	Motion Tolerance	2m/s
	Min. Symbol Contrast	≥25%

Physical	Dimensions	45(W)×59.2(D)×25(H) mm
	Weight	185g
	Prompt	Buzzer,LED
	Current @24V DC	Operating: 200mA (max) Standy: 70mA
	Input	Minimum ON voltage：±5V；Maximum rated voltage：±30V；2 inputs
	Output	Maximum rated current：50mA per channel；Maximum voltage（OFF state）：±30V；2 outputs
	Communication Interface	RS-232,TCP/IP, UDP, FTP, Modbus TCP,Ethernet/IP,Profinet,MELSEC/SLMP

Environmental	Working Temperature	-20°C to 50°C
	Storage Temperature	-40°C to 70°C
	Humidity	5% to 95% (non-condensing)
	ESD	±16 KV (air discharge); ±8 KV (direct discharge)
	Sealing	IP65

Accessories

Cable：Ethernet cable，RS232+I/O cable
Adapter：Input 100-240V，output DC 24V/1.5A
Other:Fixed bracket, Diffuser(optional)， Reflector(optional), Magnifier(optional)

Performance

Model Type
Soldier180W: mega-pixel Sub model type: Soldier180W-SP: long-distance type Soldier180W-NP: standard type Soldier180E: 2 mega-pixel Sub model type: Soldier180E-SP: long-distance type Soldier180E-NP: standard type

Sensor
CMOS image sensor

Number of Pixels
Soldier180W: 1280 × 960 pixels Soldier180E: 1600 × 1200 pixels

Focus
Liquid lens

Illumination
Soldier180W/Soldier180E: 4 High-intensity red LEDs(Standard) Soldier180W: WhiteLED/blue LED/ultraviolet LED/infraredLED (Optional)

Polarized Filter
Half polarized(standard)

Effective Focal Length
13.7mm(Soldier180W-SP/Soldier180E-SP) 6.8mm(Soldier180W-NP/Soldier180E-NP)

Field of View
Horizontal 15.2°(Soldier180W-SP/Soldier180E-SP) Vertical 11.3°(Soldier180W-NP/Soldier180E-NP)

Supported symbol
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,Codabar, Code128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39,Code 11,MSI-Plessey, Plessey, Deutsche14, Deutsche12 2D: QR Code, Data Matrix, PDF417, Aztec Code, Micro QR

Minimum Resolution
Soldier180W: 1D: 0.8mil(Soldier180W-SP), 1mil(Soldier180W-NP) 2D: 2mil(Soldier180W-SP), 2mil(Soldier180W-NP) Soldier180E: 1D: 0.613mil(Soldier180E-SP), 0.68mil(Soldier180E-NP) 2D: 0.8mil(Soldier180E-SP), 1.3mil(Soldier180E-NP)

Reading Distance
Soldier180W: 40 to 1500mm(Soldier180W-SP), 40 to 1000mm(Soldier180W-NP) Soldier180E: 40 to 2000mm(Soldier180E-SP), 40 to 1000mm(Soldier180E-NP)

Motion Tolerance
2m/s

Min. Symbol Contrast
≥25%

Physical

Dimensions
45(W)×59.2(D)×25(H) mm

Weight
185g

Prompt
Buzzer,LED

Current @24V DC
Operating: 200mA (max) Standy: 70mA

Input
Minimum ON voltage：±5V；Maximum rated voltage：±30V；2 inputs

Output
Maximum rated current：50mA per channel；Maximum voltage（OFF state）：±30V；2 outputs

Communication Interface
RS-232,TCP/IP, UDP, FTP, Modbus TCP,Ethernet/IP,Profinet,MELSEC/SLMP

Environmental

Working Temperature
-20°C to 50°C

Storage Temperature
-40°C to 70°C

Humidity
5% to 95% (non-condensing)

ESD
±16 KV (air discharge); ±8 KV (direct discharge)

Sealing
IP65

Accessories

Accessories
Cable：Ethernet cable，RS232+I/O cable Adapter：Input 100-240V，output DC 24V/1.5A Other:Fixed bracket, Diffuser(optional)， Reflector(optional), Magnifier(optional)
