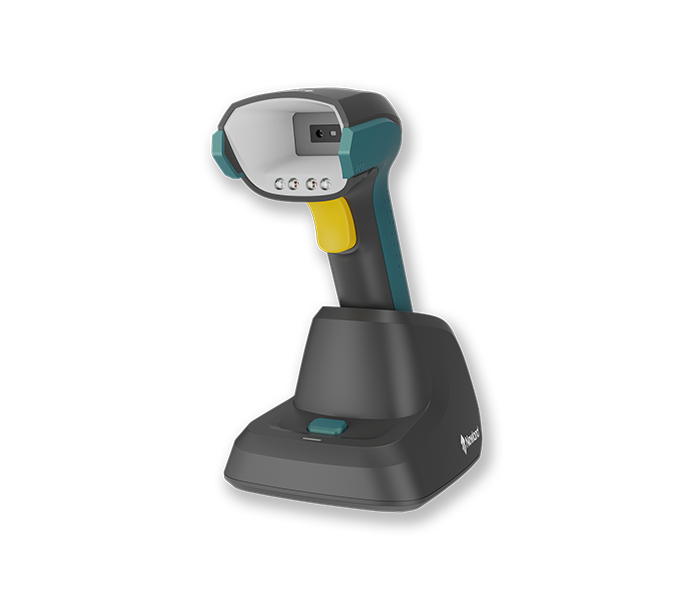

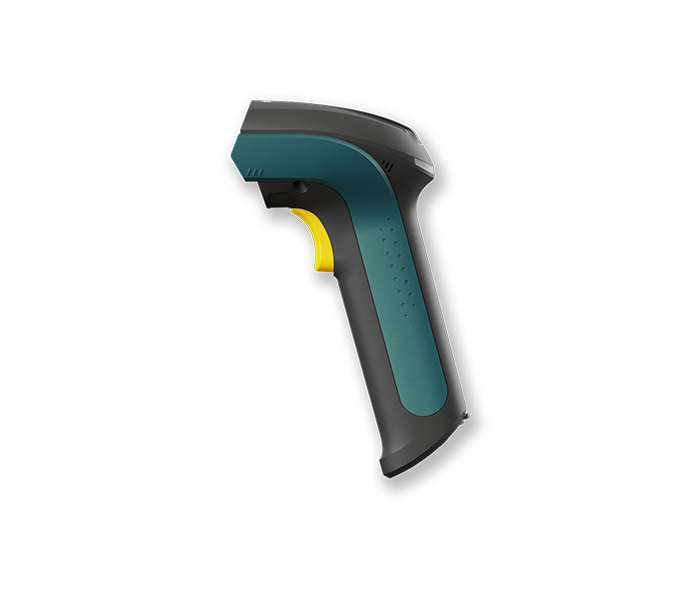

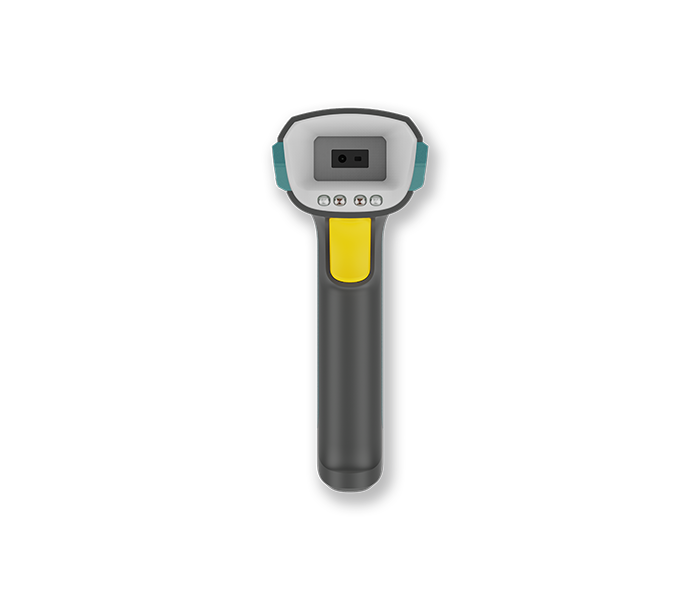

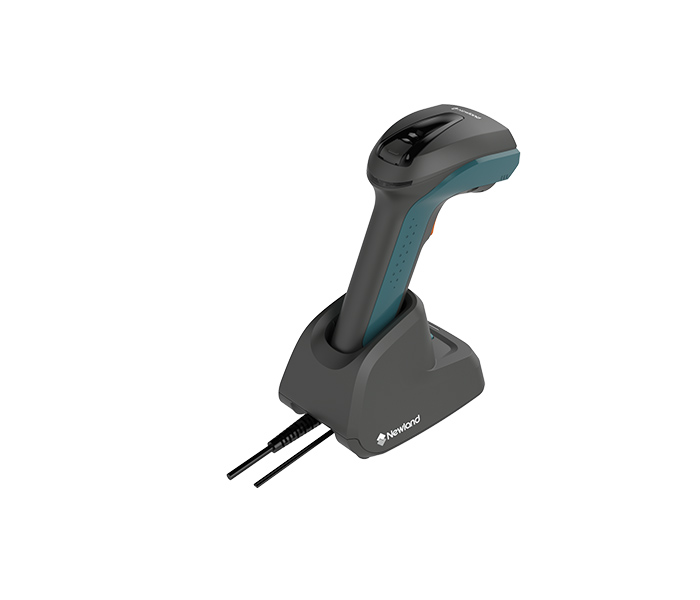

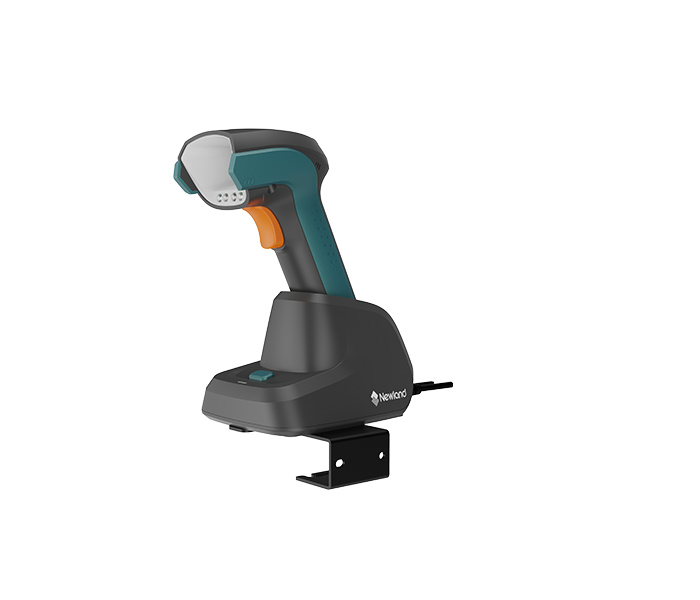

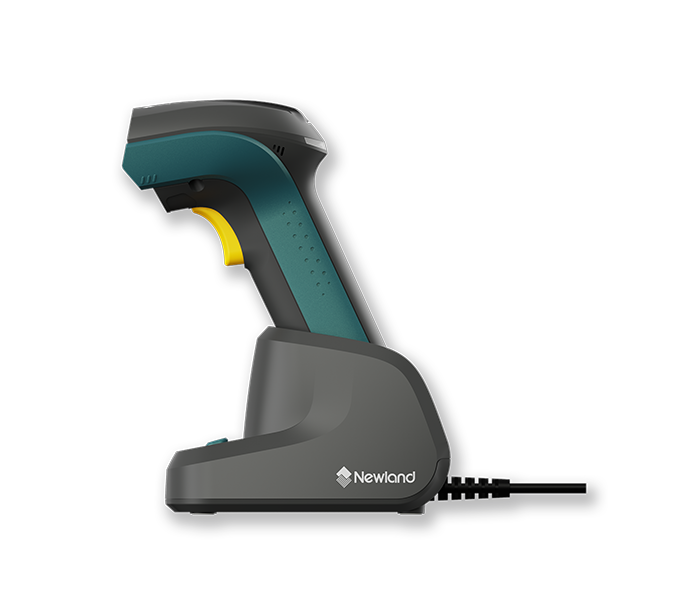

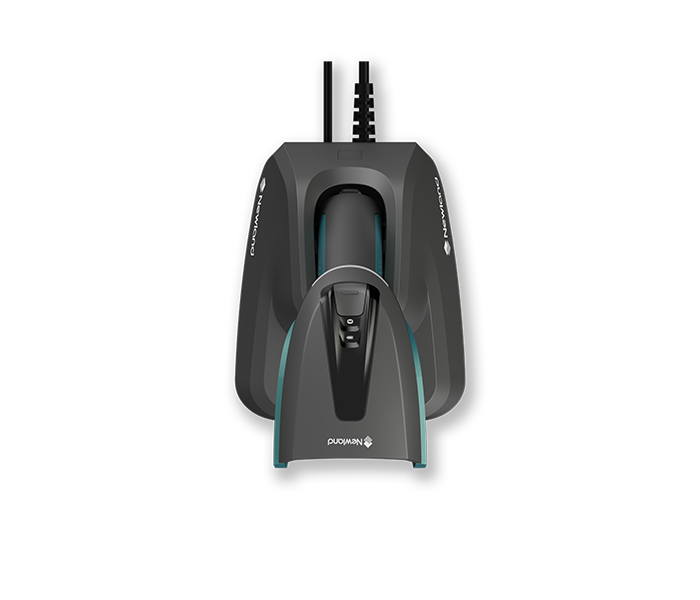

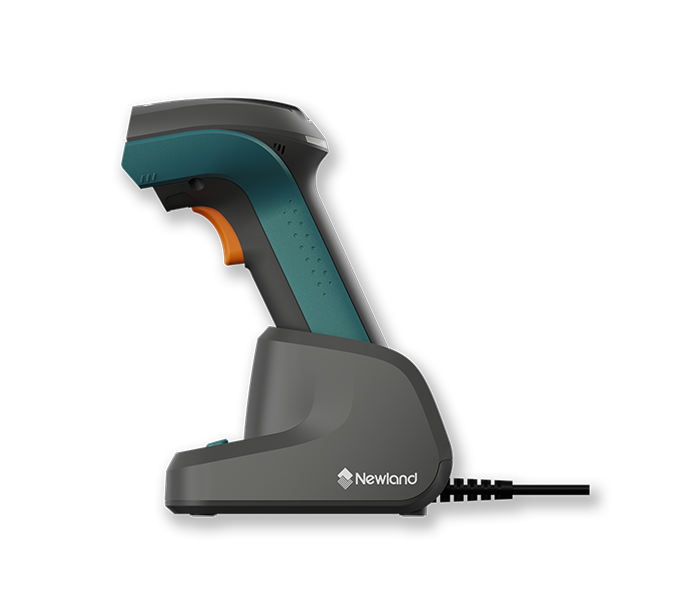

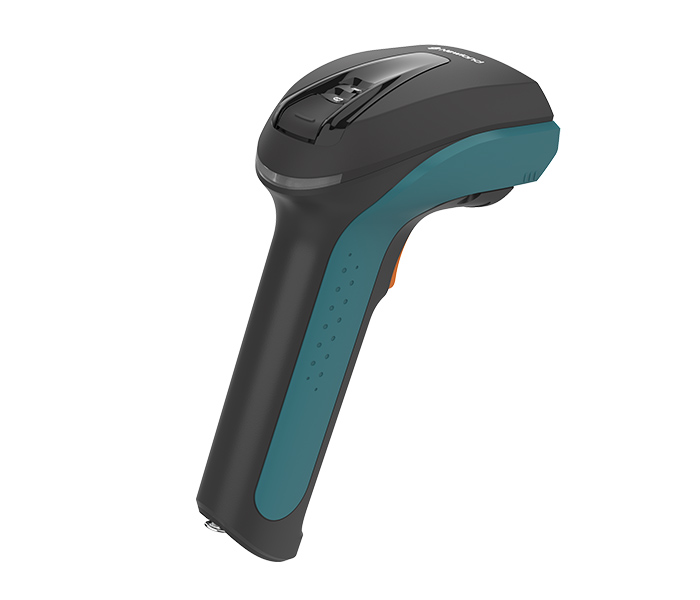

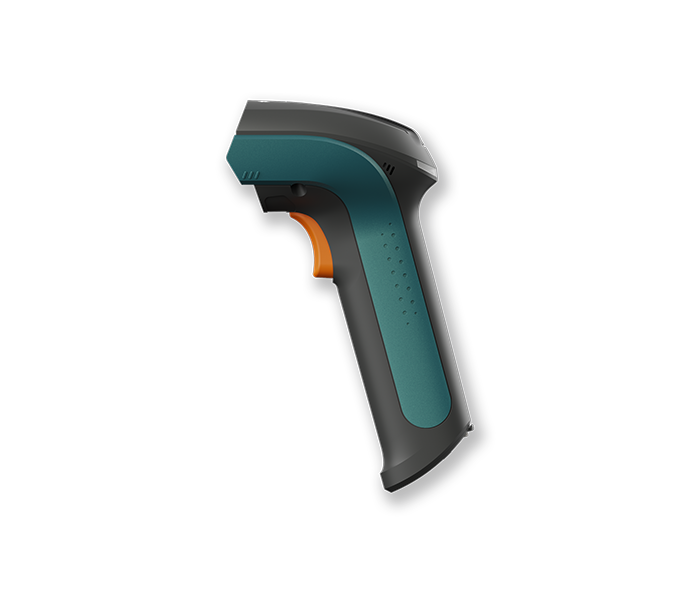

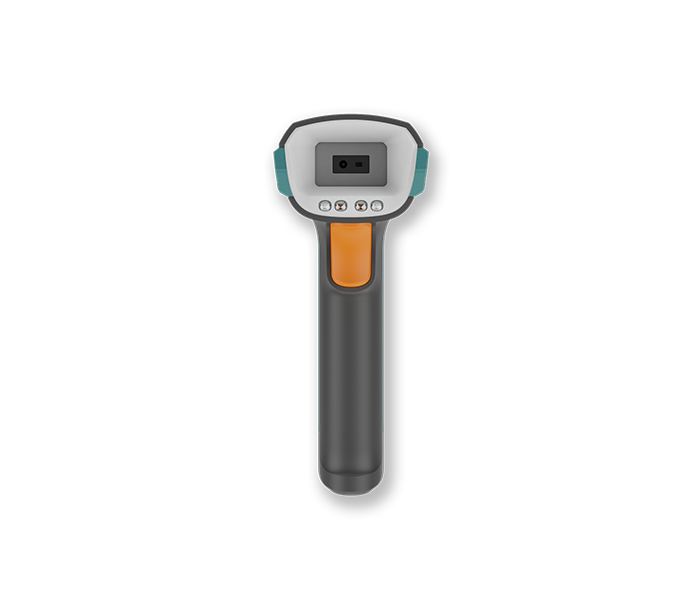

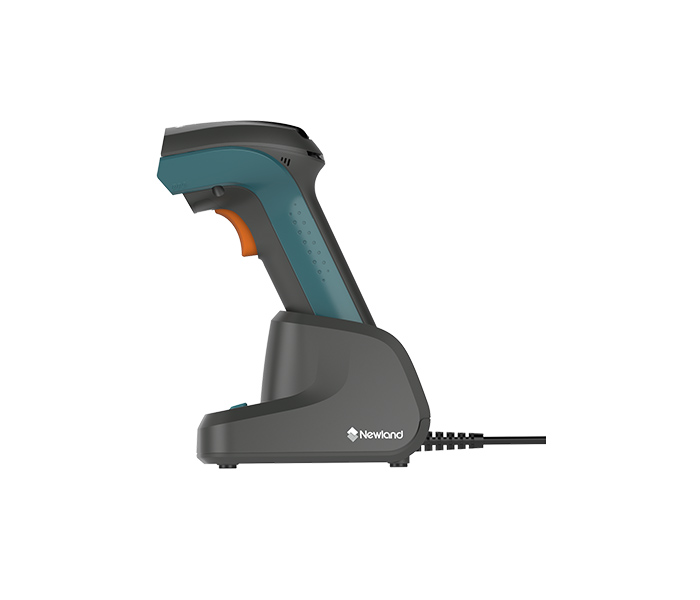

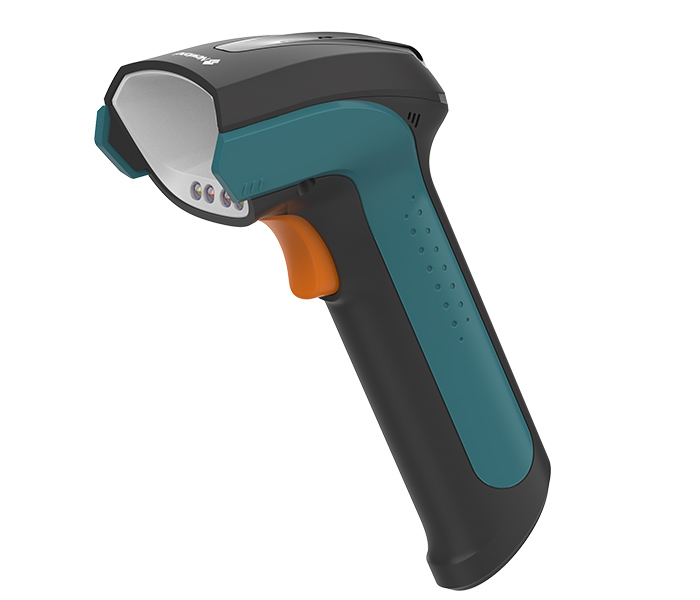

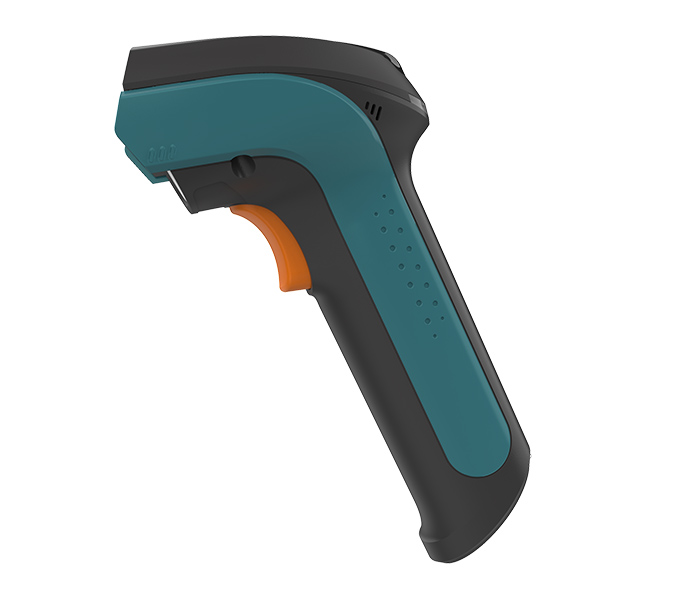

NVH220B Industrial Scanner

Features

AI Function and Intelligent Learning

Equipped with the latest AI-powered barcode positioning technology, the NLS-NVH220B improves decoding performance for low-contrast barcodes. Additionally, intelligent learning enables automatic parameter adjustments based on different scenarios.

Advanced OCR Recognition Technology

Equipped with advanced OCR technology, the NLS-NVH220B accurately recognizes alphanumeric characters on products and materials, boosting productivity

Excellent DPM Decoding Capability

Equipped with AI function, it has excellent barcode positioning and barcode reconstruction capabilities. At the same time, intelligent learning can automatically adjust parameters according to different scenarios..

High Protection Industrial Structure Design

The NLS-NVH220B built into an IP64-sealed and can withstand repeated falls from 1.8 meters to the ground, with excellent reliability and stability.

Upgraded Dual-Core Processing Platform

The NLS-NVH220B-HD features an upgraded dual-core processing platform that delivers higher compute performance at lower power, enabling faster, more stable decoding and superior image capture.

Versatile Illumination System

Provides red and blue direct (spot) illumination and white diffuse lights. The versatile lighting system accommodates reflective materials, curved surfaces, varied backgrounds, and different barcode colors, meeting diverse and complex scanning requirements.

Wireless Connectivity

Powered by the new generation of wireless communication technology, the scanner delivers low-latency, highly reliable performance with strong interference immunity, ensuring stable, reliable, and accurate data transmission even in complex RF environments.

Specifications

Performance	Image Sensor	1280 × 960 CMOS
	Illumination	Direct: white & red light LED;
	Aiming	Diffuse: Ring of blue LEDs; LED 532nm
	Symbologies	2D: QR Code, Micro QR Code, PDF 417, Data Matrix. 1D: EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI Plessey, AIM 128, ISBT 128, COOP 25, Deutsche14, Deutsche12.
	Resolution	≥3mil
	Typical Depth of Field	EAN-13(13mil) : 25mm-160mm Code 39(5mil) : 40mm-100mm Code 39(20mil) : 35mm-210mm Data Matrix(10mil) : 0mm-125mm QR Code(20mil) : 20mm-180mm
	Motion Tolerance	2m/s
	Min. Symbol Contrast	20%
	Scan Angle	Roll: 360°, Pitch: ±50°, Skew: ±50°
	Field of View	Horizontal 41°, Vertical 31°

Physical	Interface	USB, RS232, PS/2
	Operating Voltage	5VDC±5%
	Rated Power Consumption	2246mW (typical)
	Current@4VDC	Power consumption: 562mA Idle: 116mA Sleep: 43mA

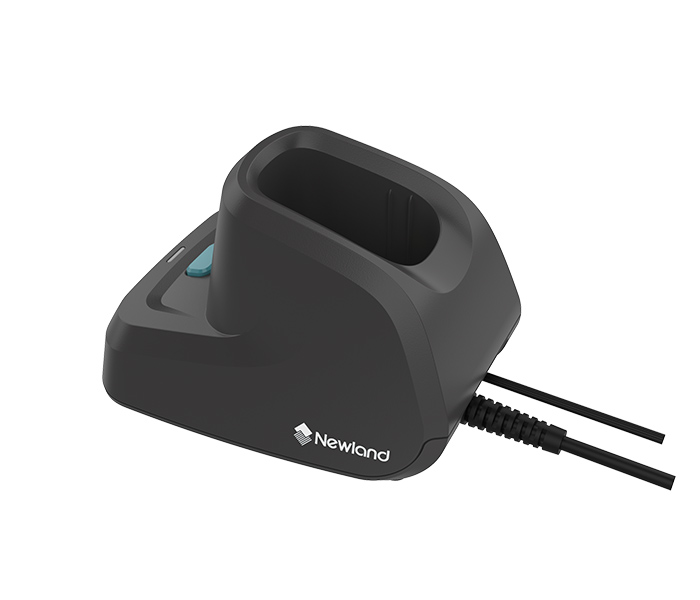

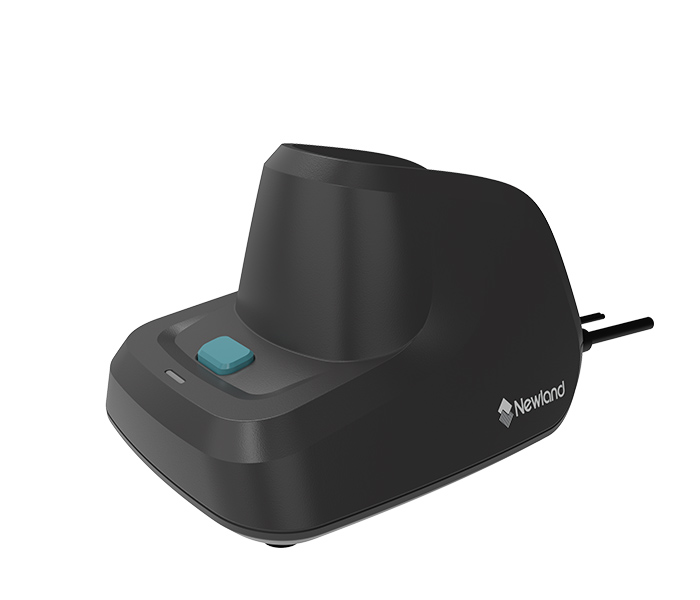

	Dimensions	Scanner: 68(W) × 105(D) × 169(H) mm, Cradle: 103(W) × 127(D) × 83(H) mm
	Weight	Scanner: 220g, Cradle: 230g
	Notification	Beep, LED indicator, Vibrator
	Communication Distance	150m (line of sight)
	Flash Memory	≥30000 pieces of code 128 (20 byte of each Code 128)
	Battery	2900mAh
	Radio Technology	2.4 to 2.2835 GHz ISM Band, Bluetooth 5.0, BLE
	Expected Battery Life	≥20 hours of continuous operation, up to 70,000 scans per charge
	Expected Charge Time	2.5 hours

Environmental	Operating Temperature	0°C to 50°C
	Storage Temperature	-20°C to 70°C
	Humidity	5% to 95% (non-condensing)
	Ambient Light	0~100,000lux (natural light)
	ESD	±16 KV (air discharge); ±8 KV (direct discharge)
	Drop	Scanner: 1.8m，Cradle: 1.2m
	Sealing	Scanner: IP64, Cradle: IP42

Performance

Image Sensor
1280 × 960 CMOS

Illumination
Direct: white & red light LED;

Aiming
Diffuse: Ring of blue LEDs; LED 532nm

Symbologies
2D: QR Code, Micro QR Code, PDF 417, Data Matrix. 1D: EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI Plessey, AIM 128, ISBT 128, COOP 25, Deutsche14, Deutsche12.

Resolution
≥3mil

Typical Depth of Field
EAN-13(13mil) : 25mm-160mm Code 39(5mil) : 40mm-100mm Code 39(20mil) : 35mm-210mm Data Matrix(10mil) : 0mm-125mm QR Code(20mil) : 20mm-180mm

Motion Tolerance
2m/s

Min. Symbol Contrast
20%

Scan Angle
Roll: 360°, Pitch: ±50°, Skew: ±50°

Field of View
Horizontal 41°, Vertical 31°

Physical

Interface
USB, RS232, PS/2

Operating Voltage
5VDC±5%

Rated Power Consumption
2246mW (typical)

Current@4VDC
Power consumption: 562mA Idle: 116mA Sleep: 43mA

Dimensions
Scanner: 68(W) × 105(D) × 169(H) mm, Cradle: 103(W) × 127(D) × 83(H) mm

Weight
Scanner: 220g, Cradle: 230g

Notification
Beep, LED indicator, Vibrator

Communication Distance
150m (line of sight)

Flash Memory
≥30000 pieces of code 128 (20 byte of each Code 128)

Battery
2900mAh

Radio Technology
2.4 to 2.2835 GHz ISM Band, Bluetooth 5.0, BLE

Expected Battery Life
≥20 hours of continuous operation, up to 70,000 scans per charge

Expected Charge Time
2.5 hours

Environmental

Operating Temperature
0°C to 50°C

Storage Temperature
-20°C to 70°C

Humidity
5% to 95% (non-condensing)

Ambient Light
0~100,000lux (natural light)

ESD
±16 KV (air discharge); ±8 KV (direct discharge)

Drop
Scanner: 1.8m，Cradle: 1.2m

Sealing
Scanner: IP64, Cradle: IP42
