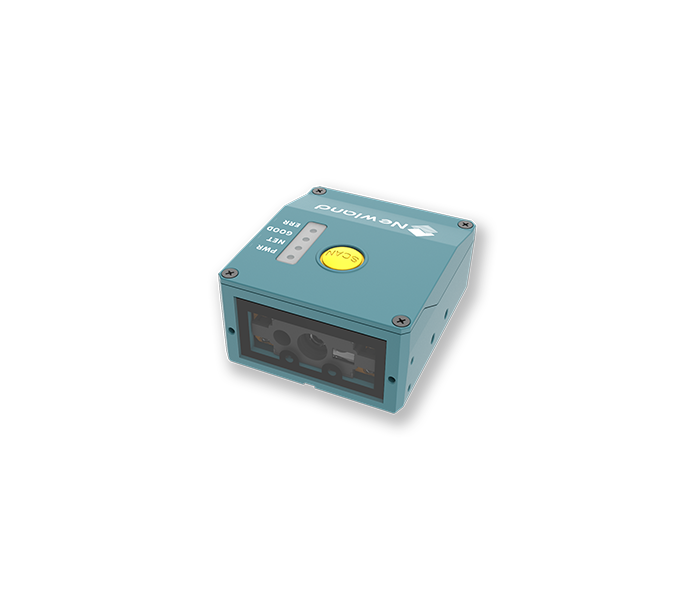

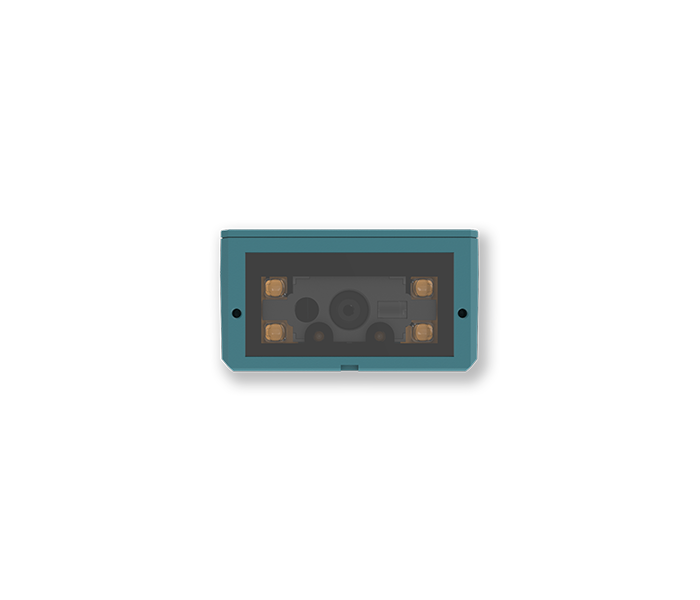

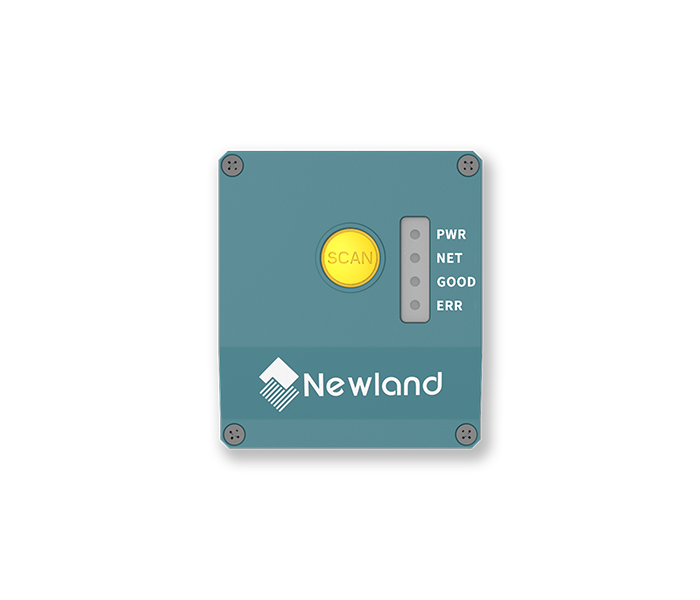

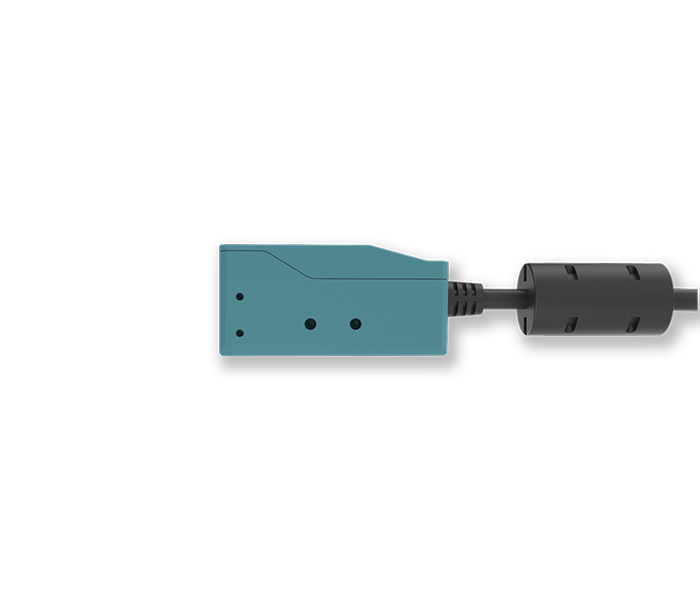

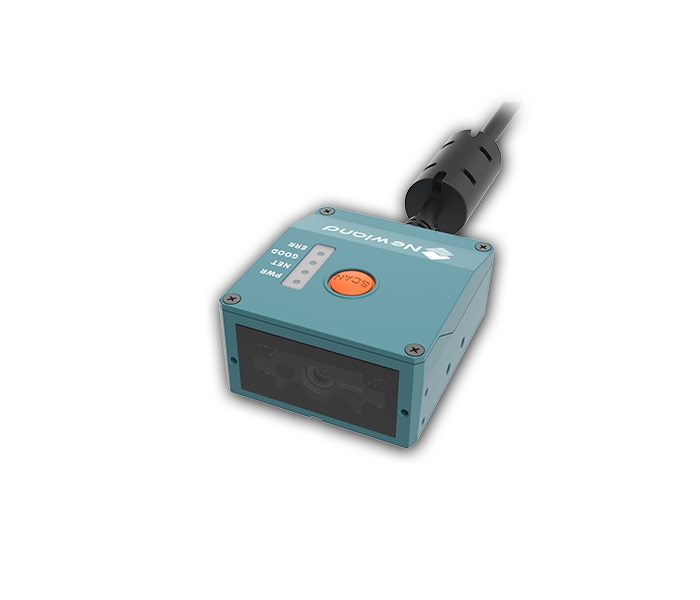

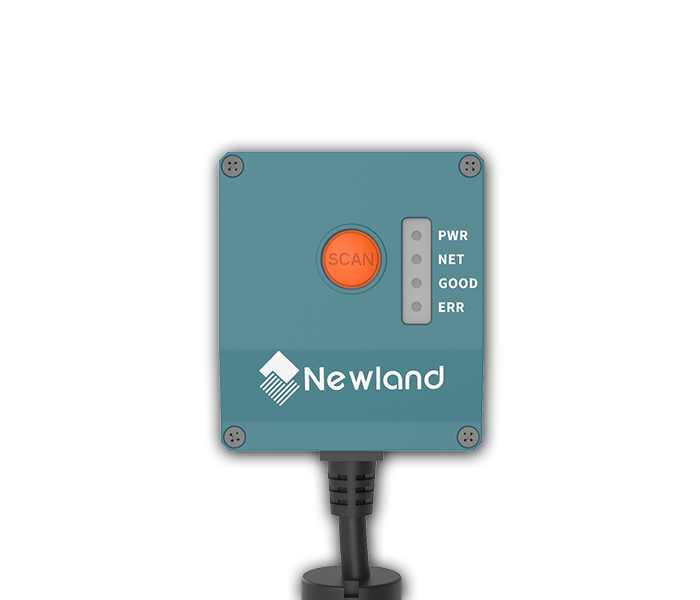

NVF230 Industrial Scanner

Product specifications

Decode Capability
1D, 2D
Connectivity
Corded
Dimension
45(W)×51(D)×25(H)mm
Weight
184g
Sealing
IP54
Interface
USB, RS-232, TCP/IP, UDP, FTP, Modbus, Ethernet/IP, Profinet, MELSEC/SLMP

Features

2D Barcode
1D Barcode
RS232
USB
IP54

Vertical

Manufacturing

Features
Specifications
Downloads
Accessories

Features

Advanced Hardware Performance

Equipped with next-generation AI platform, 1280×800 high-resolution low-noise image sensor, and IP54-rated design, the NLS-NVF230 enhances optical performance, delivering exceptional decoding capabilities and reliability.

Excellent Decoding Capability

Featuring a proprietary AI-powered industrial decoding algorithm, the NLS-NVF230 delivers exceptional performance in decoding both 1D and 2D barcodes. It instantly scans printed and non-reflective barcodes upon power-up, with no need for image parameter adjustments.

Multiple Accessories for Diverse Scenarios

The NLS-NVF230 supports various accessories including diffuser, reflector, and magnifier, providing effective solutions for reflective environments and limited installation scenarios, making it suitable for a wide range of applications.

User-Friendly Configuration Method

The NSet configuration tool simplifies parameter setup, supporting configuration libraries, multi-code sorting, and script programming, enabling users to access advanced functionalities with ease.

Versatile Communication Interface

The NLS-NVF230 integrates USB, RS-232, and Ethernet interfaces, supporting mainstream industrial protocols such as TCP, Ethernet/IP, Profinet, and MELSEC/SLMP. With interface auto-adaptation, it enables seamless and rapid connection to debugging software.

Specifications

Performance	Model Type	NLS-NVF230-SR(Standard depth of field) NLS-NVF230-HD(Near depth of field)
	Sensor	1280 × 800 CMOS
	Aiming	Cross Laser
	Illumination	4 white LEDs
	Symbologies	1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Code 128, Code 39, Code 93, Codabar, UCC/EAN 128, AIM128, Interleaved 2 of 5, ITF-14, ITF-6, Standard 2 of 5, Matrix 2 of 5, COOP 25, Industrial 2 of 5, Plessey, MSI Plessey, ISBT128, Deutsche14, Deutsche12, Code 11. 2D: QR Code, Data Matrix, PDF417, Micro QR.
	Minimum Resolution	≥3mil
	Field of View	Horizontal 51°, Vertical 32°
	Typical Depth of Field	NVF230-SR: QR(15mil): 40-310mm DM(10mil): 50-210mm Code39(5mil): 65-230mm EAN13(13mil): 50-460mm NVF230-HD: QR(15mil): 30-175mm QR(5.6mil): 45-85mm DM(10mil): 35-140mm DM(6.7mil): 40-100mm Code39(5mil): 40-140mm

Physical	Dimensions	45(W) × 51(D) × 25(H) mm
	Weight	184g
	Notification	Buzzer, LED
	Operating Voltage	5-24VDC
	Rated Power Consumption	1600mW
	Current@5V DC	Operating: 320mA (typical), 510mA (max). Standby 84mA
	Input	Minimum ON voltage: ±5V; maximum rated voltage: ±30V; 1 input.
	Outputs	Maximum rated current：50mA per channel, maximum voltage (OFF state): ±30V; 2 outputs.
	Interfaces	USB, RS-232, TCP/IP, UDP, FTP, Modbus, TCP, Ethernet/IP, Profinet, MELSEC/SLMP

Environmental	Operating Temperature	-20°C to 50°C(-4°F to 122°F)
	Storage Temperature	-40°C to 70°C(-40°F to 158°F)
	Humidity	5% to 95% (non-condensing)
	ESD	±16 KV (air discharge); ±8 KV (direct discharge)
	Sealing	IP54

Accessories	Cable	USB cable, USB + I/O cable, RS232 + USB Type-C+ I/O cable, RS232 + Ethernet + I/O cable
	Adapter	Input 100~240V, output DC 5V/1.5A
	Others	Fixed bracket, diffuser (optional), reflector (optional), magnifier (optional)

Performance

Model Type
NLS-NVF230-SR(Standard depth of field) NLS-NVF230-HD(Near depth of field)

Sensor
1280 × 800 CMOS

Aiming
Cross Laser

Illumination
4 white LEDs

Symbologies
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Code 128, Code 39, Code 93, Codabar, UCC/EAN 128, AIM128, Interleaved 2 of 5, ITF-14, ITF-6, Standard 2 of 5, Matrix 2 of 5, COOP 25, Industrial 2 of 5, Plessey, MSI Plessey, ISBT128, Deutsche14, Deutsche12, Code 11. 2D: QR Code, Data Matrix, PDF417, Micro QR.

Minimum Resolution
≥3mil

Field of View
Horizontal 51°, Vertical 32°

Typical Depth of Field
NVF230-SR: QR(15mil): 40-310mm DM(10mil): 50-210mm Code39(5mil): 65-230mm EAN13(13mil): 50-460mm NVF230-HD: QR(15mil): 30-175mm QR(5.6mil): 45-85mm DM(10mil): 35-140mm DM(6.7mil): 40-100mm Code39(5mil): 40-140mm

Physical

Dimensions
45(W) × 51(D) × 25(H) mm

Weight
184g

Notification
Buzzer, LED

Operating Voltage
5-24VDC

Rated Power Consumption
1600mW

Current@5V DC
Operating: 320mA (typical), 510mA (max). Standby 84mA

Input
Minimum ON voltage: ±5V; maximum rated voltage: ±30V; 1 input.

Outputs
Maximum rated current：50mA per channel, maximum voltage (OFF state): ±30V; 2 outputs.

Interfaces
USB, RS-232, TCP/IP, UDP, FTP, Modbus, TCP, Ethernet/IP, Profinet, MELSEC/SLMP

Environmental

Operating Temperature
-20°C to 50°C(-4°F to 122°F)

Storage Temperature
-40°C to 70°C(-40°F to 158°F)

Humidity
5% to 95% (non-condensing)

ESD
±16 KV (air discharge); ±8 KV (direct discharge)

Sealing
IP54

Accessories

Cable
USB cable, USB + I/O cable, RS232 + USB Type-C+ I/O cable, RS232 + Ethernet + I/O cable

Adapter
Input 100~240V, output DC 5V/1.5A

Others
Fixed bracket, diffuser (optional), reflector (optional), magnifier (optional)
