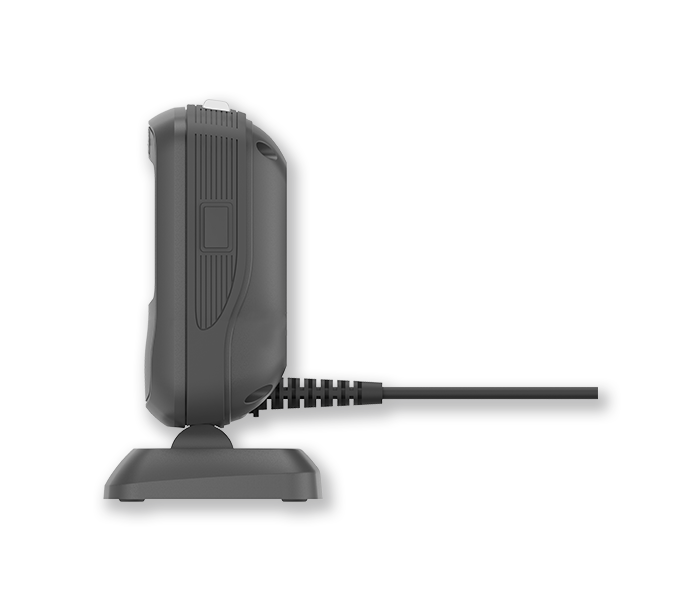

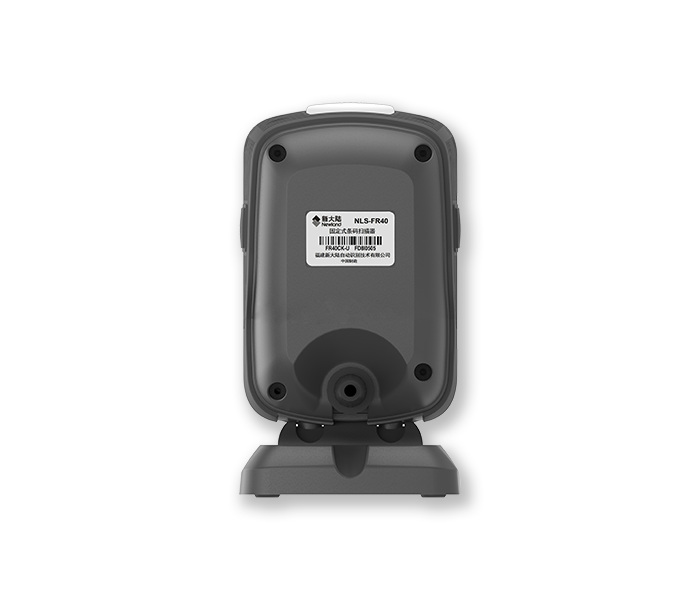

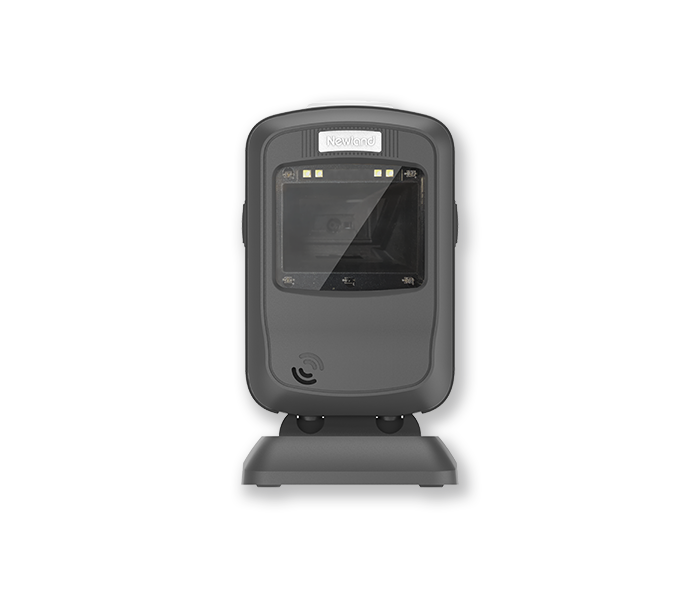

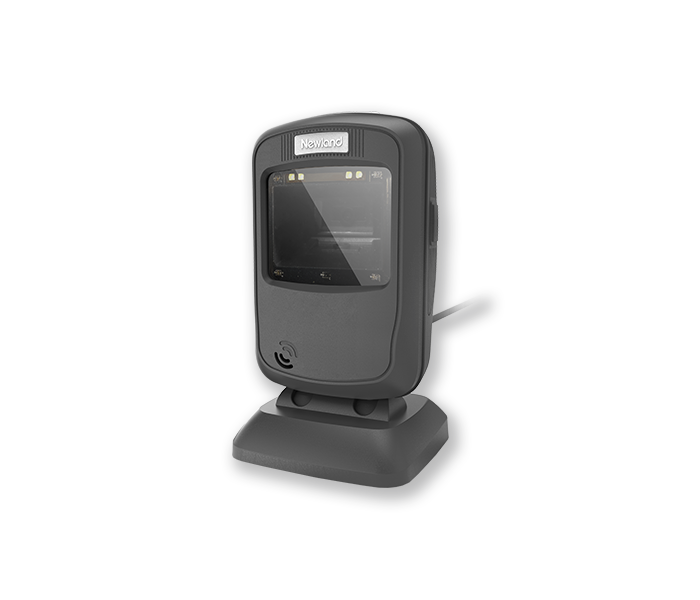

FR4080 Desktop Scanner

Product specifications

Decode Capability
1D, 2D
Connectivity
Corded
Dimension
83×81×148mm
Weight
290g
Sealing
IP52
Interface
USB, RS-232

Features

CMOS
1D Barcode
2D Barcode
USB
RS232
IR
IP52

Vertical

Retail
Mobile Payment
Public Sector

Features
Specifications
Downloads
Accessories

Features

Seamless reading

More convenient.Reads paper barcode and screen barcodes seamlessly without switching.

AI-powered Decoding Performance

Features an upgraded dual-core processing platform that enhances computing capability and efficiency, enabling faster, more stable decoding with lower power consumption.

IP52-rated Sealing

An IP52-rated seal protects the scanner against the ingress of dust, water and other contaminants.

1.2m Drop Resistance

The scanner withstands multiple 1.2m drops to concrete (for six sides, one drop per side).

IR Trigger

The IR sensor in the scanner enables speedy capture of barcodes presented to it, markedly increasing throughput and productivity.

Specifications

Performance	Image Sensor	1280×800 CMOS
	Illumination	White LED
	Symbologies	2D: PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc. 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.
	Resolution	≥3mil
	Typical Depth of Field	EAN-13: 10-280mm (13mil) QR Code: 10-190mm (15mil)
	Scan Angle	Pitch: ±50°, Roll: 360°, Skew: ±50°
	Min. Symbol Contrast	25%
	Field of View	Horizontal 51°, Vertical 32°

Physical	Dimensions	83(W) × 81(D) × 148(H) mm
	Weight	290g
	Notification	Beep, LED
	Operating Voltage	5VDC±5%
	Rated Power Consumption	1375mW (typical)
	Current@5VDC	Operating: 275mA (typical)
	Interfaces	RS-232, USB

Environmental	Operating Temperature	-20°C to 60°C (-4°F to 140°F)
	Storage Temperature	-40°C to 70°C (-40°F to 158°F)
	Humidity	5%~95% (non-condensing)
	ESD	±14 KV (air discharge); ±8 KV (direct discharge)
	Drop	1.2m drops to concrete (for six sides, one drop per side)
	Sealing	IP52

Certifications

FCC Part15 Class B, CE EMC Class B, RoHS

Performance

Image Sensor
1280×800 CMOS

Illumination
White LED

Symbologies
2D: PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc. 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.

Resolution
≥3mil

Typical Depth of Field
EAN-13: 10-280mm (13mil) QR Code: 10-190mm (15mil)

Scan Angle
Pitch: ±50°, Roll: 360°, Skew: ±50°

Min. Symbol Contrast
25%

Field of View
Horizontal 51°, Vertical 32°

Physical

Dimensions
83(W) × 81(D) × 148(H) mm

Weight
290g

Notification
Beep, LED

Operating Voltage
5VDC±5%

Rated Power Consumption
1375mW (typical)

Current@5VDC
Operating: 275mA (typical)

Interfaces
RS-232, USB

Environmental

Operating Temperature
-20°C to 60°C (-4°F to 140°F)

Storage Temperature
-40°C to 70°C (-40°F to 158°F)

Humidity
5%~95% (non-condensing)

ESD
±14 KV (air discharge); ±8 KV (direct discharge)

Drop
1.2m drops to concrete (for six sides, one drop per side)

Sealing
IP52

Certifications


FCC Part15 Class B, CE EMC Class B, RoHS

Downloads

Specification Sheets

NLS-FR4080_Datasheet_en

NLS-FR4080_Datasheet_en

Language: English

Download

Manual & Technical Literature

NLS-FR4080_User_Guide

NLS-FR4080_User_Guide

Language: English

Download

Software

Easyset

Easyset

Language: English

Download
JPOS_Newland_Scanner

JPOS_Newland_Scanner

Language: English

Download
OPOS_Newland_Scanner

OPOS_Newland_Scanner

Language: English

Download
UFCOM_Driver

UFCOM_Driver

Language: English

Download
USB-COM_Driver

USB-COM_Driver

Language: English

Download

Accessories

R050150-864Z-3

Power Adaptor with US/EU/UK Plugs
