Powered by AI-driven platform and Newland’s latest self-developed of UIMG decoding technology, the HR2000 delivers powerful, high-speed, and highly accurate barcode reading performance, capable of handling even challenging scanning scenarios with ease.

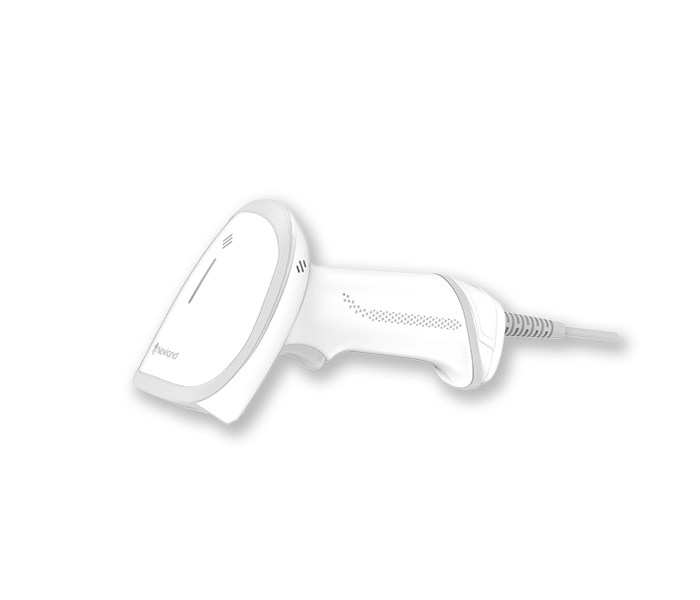

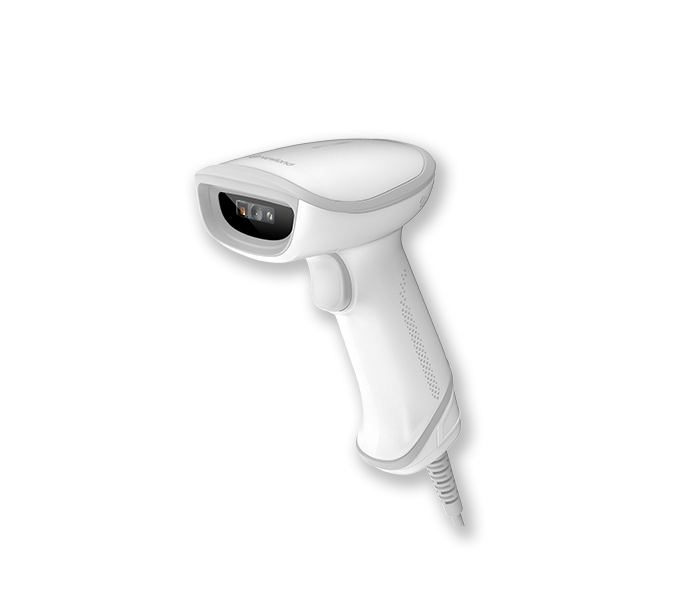

The NLS-HR2000 HC features an antimicrobial housing resistant to frequent disinfection, supporting hygiene and infection control in hospitals, laboratories, pharmacies and other healthcare environment.
Fully supports GS1 Digital Link and all major GS1 2D output modes, the HR2000 enables a smooth migration from traditional1D barcodes to next-generation retail and healthcare applications.
Combining comfort, usability, and aesthetics, the HR2000 enhances the user experience while fitting seamlessly into modern retail settings.
With an IP52 rating and a 1.5m drop resistance, the HR2000 is built to withstand everyday use in retail, logistics, healthcare, and other demanding environments.
Combining excellent decoding performance, durability, and reliability, the HR2000 offers outstanding value for customers seeking the optimal balance between performance and investment.
Performance | Image Sensor | 600 × 800 CMOS | |
| Illumination | White LED | ||
| Aiming | Red LED | ||
| Symbologies | 1D: Code 11, Code 128, Code 39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128, Codabar,Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN,Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5, China Post 25, MSI-Plessey, Plessey, GS1 Databar(RSS), Code 49, Code 16K, Deitsche 14, Deitsche 12. 2D: PDF417, QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR, MaxiCode, Dot code. GS1: Digital Link |
||
| Resolution | ≥3mil | ||
| Typical Depth of Field | EAN-13: 40mm-370mm (13mil) Code 39: 30mm-160mm (5mil) PDF 417: 40mm-140mm (6.7mil) Data Matrix: 20mm-170mm (10mil) QR Code: 20mm-230mm(15mil) |
||
| Scan Angle | Pitch: ±60°, Skew: ±60°, Roll: 360° | ||
| Field of View | Horizontal 45°, Vertical 34° | ||
| Min. Symbol Contrast | 20% | ||
Physical | Interface | USB, RS-232 | |
| Operating Voltage | 5VDC±5% | ||
| Rated Power Consumption | 950mW (typical) | ||
| Current@5VDC | Operating: 190mA (typical), 300mA (max.) Idle: 120mA |
||
| Dimensions | 117.5(L)×67.5(W)×144mm(H) | ||
| Weight | 137g | ||
| Notification | Beep, LED, Vibration | ||
Environmental | Operating Temperature | -20°C to 50°C (-4°F to 122°F) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | ||
| Humidity | 5%~95% (non-condensing) | ||
| ESD | ±15 KV (air discharge); ±8 KV (direct discharge) | ||
| Drop | 1.5m | ||
| Sealing | IP52 | ||
Certificates | CE, FCC, KC, BIS, RoHS 2.0, IEC62471 | ||
| Image Sensor | |
|---|---|
| 600 × 800 CMOS | |
| Illumination | |
|---|---|
| White LED | |
| Aiming | |
|---|---|
| Red LED | |
| Symbologies | |
|---|---|
| 1D: Code 11, Code 128, Code 39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128, Codabar,Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN,Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5, China Post 25, MSI-Plessey, Plessey, GS1 Databar(RSS), Code 49, Code 16K, Deitsche 14, Deitsche 12. 2D: PDF417, QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR, MaxiCode, Dot code. GS1: Digital Link |
|
| Resolution | |
|---|---|
| ≥3mil | |
| Typical Depth of Field | |
|---|---|
| EAN-13: 40mm-370mm (13mil) Code 39: 30mm-160mm (5mil) PDF 417: 40mm-140mm (6.7mil) Data Matrix: 20mm-170mm (10mil) QR Code: 20mm-230mm(15mil) |
|
| Scan Angle | |
|---|---|
| Pitch: ±60°, Skew: ±60°, Roll: 360° | |
| Field of View | |
|---|---|
| Horizontal 45°, Vertical 34° | |
| Min. Symbol Contrast | |
|---|---|
| 20% | |
| Interface | |
|---|---|
| USB, RS-232 | |
| Operating Voltage | |
|---|---|
| 5VDC±5% | |
| Rated Power Consumption | |
|---|---|
| 950mW (typical) | |
| Current@5VDC | |
|---|---|
| Operating: 190mA (typical), 300mA (max.) Idle: 120mA |
|
| Dimensions | |
|---|---|
| 117.5(L)×67.5(W)×144mm(H) | |
| Weight | |
|---|---|
| 137g | |
| Notification | |
|---|---|
| Beep, LED, Vibration | |
| Operating Temperature | |
|---|---|
| -20°C to 50°C (-4°F to 122°F) | |
| Storage Temperature | |
|---|---|
| -40°C to 70°C (-40°F to 158°F) | |
| Humidity | |
|---|---|
| 5%~95% (non-condensing) | |
| ESD | |
|---|---|
| ±15 KV (air discharge); ±8 KV (direct discharge) | |
| Drop | |
|---|---|
| 1.5m | |
| Sealing | |
|---|---|
| IP52 | |
| CE, FCC, KC, BIS, RoHS 2.0, IEC62471 | |
