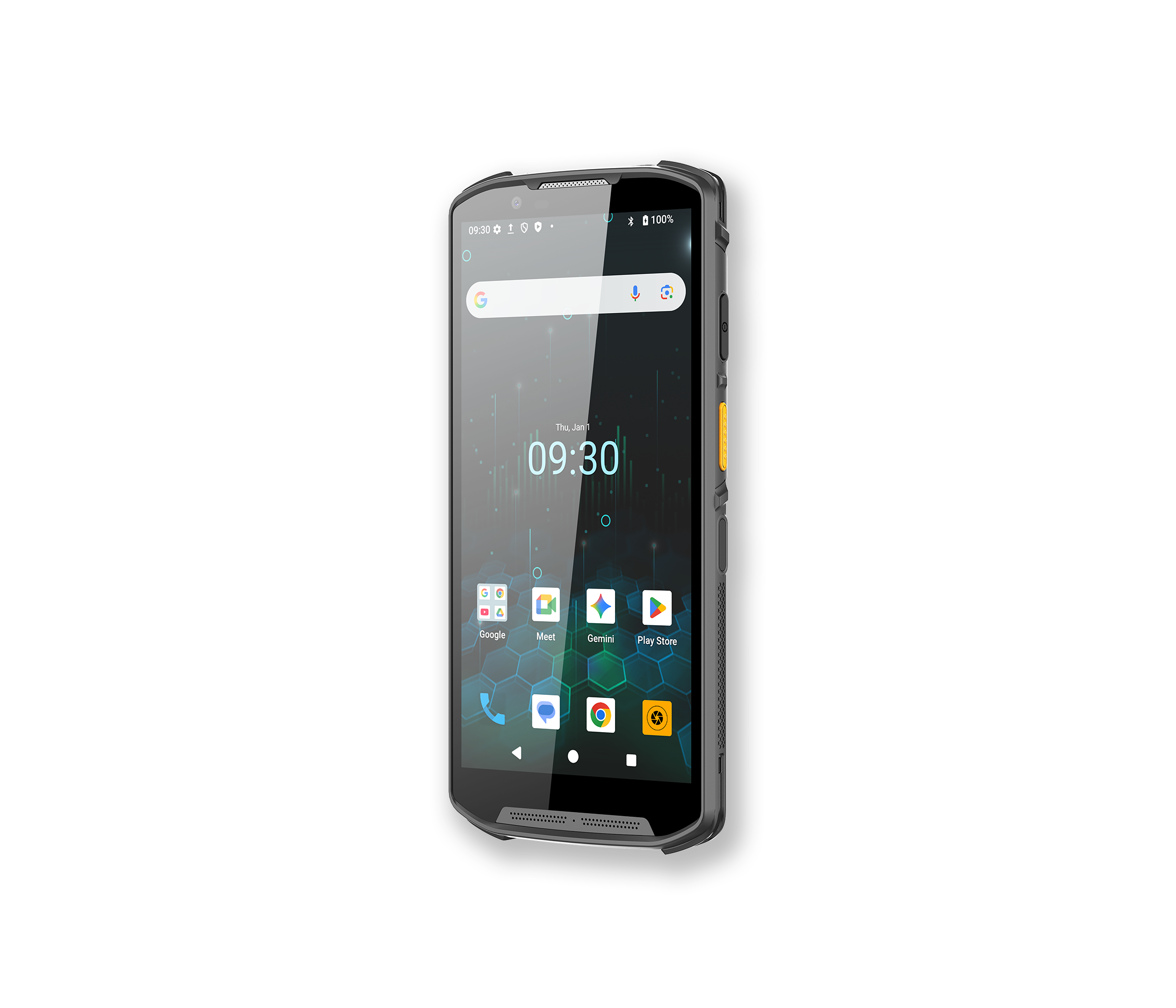

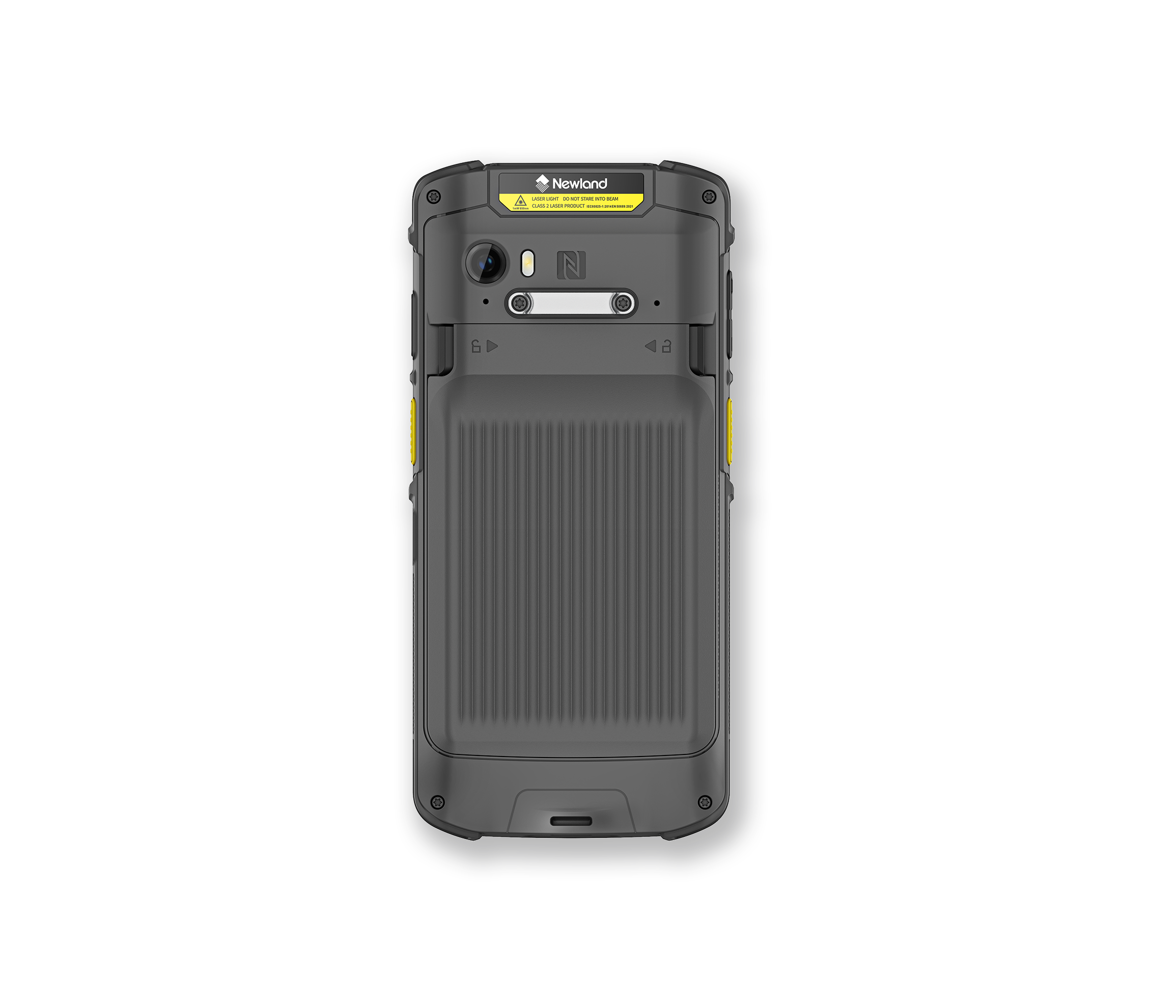

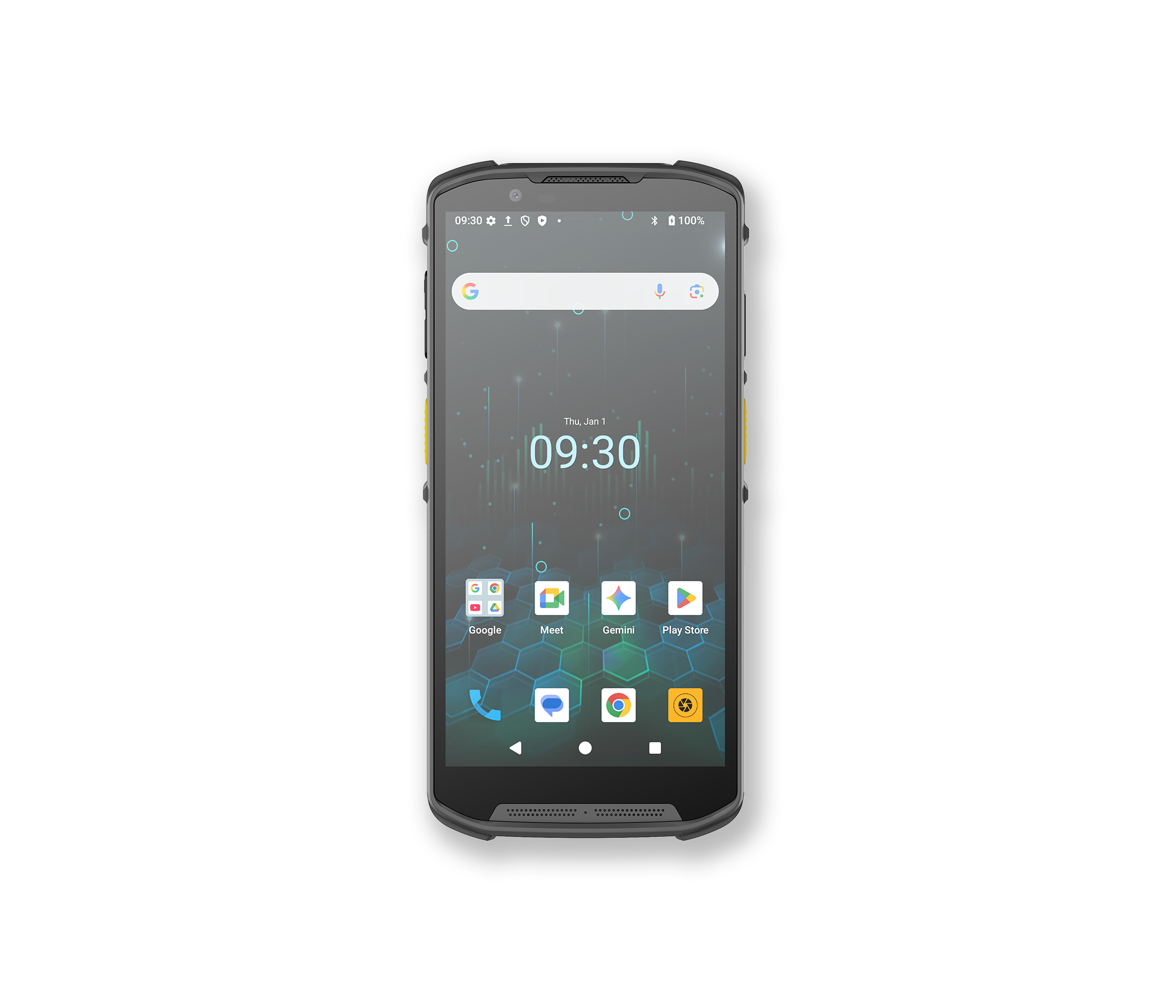

MT95 Mobile Terminal

Product specifications

Dimension
165x78.5x15.5mm
Weight
287g (including battery)
Sealing
IP67
Network Connection
WLAN, WWAN, WPAN
Operating System
Android 13
Screen Size
6.1"

Features

2D Barcode
1D Barcode
Android
1.5m
GPS
4G
IP67

Vertical

Retail
Warehouse
Healthcare
Transportation & Logistic
Public Sector

Features
Specifications
Downloads
Accessories

Features

6" Full Screen Display Experience

6.1" HD display screen, support multi-point capacitive touch screen, design with Gorilla Glass to provide better drop performance and higher resistance to scratch.

Large Capacity Battery and Super-Fast Charging

The NLS-MT95 is equipped with a 6000mAh battery, supplemented by a low power design, which significantly extends the usage time. Besides, it supports fast charging with a Type-C port, and the charging power is up to 18W.

Powerful Performance

The NLS-MT95 comes with Android 13 operating system and is powered by a 2.4GHz octa-core processor. It supports ViLte and 5G dual SIM dual standby for full Netcom to meet various application needs.

Rugged Durability

The NLS-MT95’s rugged housing is sealed to IP67 standards for protection against dust and water and withstands 1.5m drops to concrete.

Specifications

Performance	Processor	2.4 GHz, octa-core 64-bit processor
	Operating System	Android 13
	Memory	4GB RAM, 64GB ROM
	Symbologies	2D: Aztec, Composite, CS Code, Maxicode, Mic「o PDF, Micro QR, PDF 417, QR Code, Data Matrix, DotCode 1D: Codel28, Code 49, Code 16K, (GS1128) UCC/EAN-128, AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standa 「 d 2 of 5, Code39, ISSN, ISBN, CodaBar, Code93, Code 11, Plessey, MSI Plessey, RSS
	Depth of Field(Depend on Barcode and Environment)	EAN-13 (13mil): 70mm-600mm Code39 (5mil): 120mm-280mm PDF17 (6.7mil): 110mm-230mm Data Matrix (10mil): 110mm-260mm QR Code (15mil): 55mm-400mm

Physical	Dimensions	165(L) × 78.5(W) × 15.5(H) mm
	Weight	287g (including battery)
	Display	6.1” (720×1560), Gorilla Glass screen
	Keypad	5 keys(side keys included)
	Notification	Vibration, speaker and multi-color LEDs
	Battery	3.85V, 6000mAh
	Camera	Front camera: 8 megapixels, fixed focus Rear camera: 13 megapixels, auto focus, with LED flashlight
	GPS	GPS (AGPS), GLONASS, Beidou, Galileo
	Expansion	Build in TF card (optional)
	AC Adapter	18W Fast Charging Supported
	Card Slots	Nano+Nano
	Interface	Type-C 2.0 OTG, Type-C earphone
	Sensors	Light & Proximity sensor, accelerometer sensor, magnetic sensor, gyroscope sensor

Environmental	Operating Temperature	-20°C to 50°C (-4°F to 122°F)
	Storage Temperature	-30℃ to 60℃ (-22°F to 140°F)
	Humidity	5%~95% (non-condensing)
	Static Discharge	±15 kV (air discharge), ±8 kV (direct discharge)
	Drop	1.5m drops to concrete (for six sides, one drop per side)
	Sealing	IP67

NFC

13.56MHz RFID

ISO14443A/B, ISO15693, ISO18000-3, MIFARE, FeliCa RF, Kovio, NFC Forum Type 1-4 Tags

Wireless	WLAN RADIO	Built-in 802.11 a/b/g/n/ac, support 2.4G and 5G dual frequency
	WWAN RADIO(For 4G Version)	2G: GSM (B2, B3, B5, B8) 3G: WCDMA (B1, B2, B5, B8); TD-SCDMA (B34, B39) ; CDMA: 1X EVDO (BC0) 4G: TDD-LTE (B34, B38, B39, B40, B41) FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28 a&b) 5G: NR (N1/3/8/28/38/41/77/78/79)
	WPAN RADIO	Bluetooth 5.2

Accessory

AC adapter, cable

Performance

Processor
2.4 GHz, octa-core 64-bit processor

Operating System
Android 13

Memory
4GB RAM, 64GB ROM

Symbologies
2D: Aztec, Composite, CS Code, Maxicode, Mic「o PDF, Micro QR, PDF 417, QR Code, Data Matrix, DotCode 1D: Codel28, Code 49, Code 16K, (GS1128) UCC/EAN-128, AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standa 「 d 2 of 5, Code39, ISSN, ISBN, CodaBar, Code93, Code 11, Plessey, MSI Plessey, RSS

Depth of Field(Depend on Barcode and Environment)
EAN-13 (13mil): 70mm-600mm Code39 (5mil): 120mm-280mm PDF17 (6.7mil): 110mm-230mm Data Matrix (10mil): 110mm-260mm QR Code (15mil): 55mm-400mm

Physical

Dimensions
165(L) × 78.5(W) × 15.5(H) mm

Weight
287g (including battery)

Display
6.1” (720×1560), Gorilla Glass screen

Keypad
5 keys(side keys included)

Notification
Vibration, speaker and multi-color LEDs

Battery
3.85V, 6000mAh

Camera
Front camera: 8 megapixels, fixed focus Rear camera: 13 megapixels, auto focus, with LED flashlight

GPS
GPS (AGPS), GLONASS, Beidou, Galileo

Expansion
Build in TF card (optional)

AC Adapter
18W Fast Charging Supported

Card Slots
Nano+Nano

Interface
Type-C 2.0 OTG, Type-C earphone

Sensors
Light & Proximity sensor, accelerometer sensor, magnetic sensor, gyroscope sensor

Environmental

Operating Temperature
-20°C to 50°C (-4°F to 122°F)

Storage Temperature
-30℃ to 60℃ (-22°F to 140°F)

Humidity
5%~95% (non-condensing)

Static Discharge
±15 kV (air discharge), ±8 kV (direct discharge)

Drop
1.5m drops to concrete (for six sides, one drop per side)

Sealing
IP67

NFC

13.56MHz RFID
ISO14443A/B, ISO15693, ISO18000-3, MIFARE, FeliCa RF, Kovio, NFC Forum Type 1-4 Tags

Wireless

WLAN RADIO
Built-in 802.11 a/b/g/n/ac, support 2.4G and 5G dual frequency

WWAN RADIO(For 4G Version)
2G: GSM (B2, B3, B5, B8) 3G: WCDMA (B1, B2, B5, B8); TD-SCDMA (B34, B39) ; CDMA: 1X EVDO (BC0) 4G: TDD-LTE (B34, B38, B39, B40, B41) FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28 a&b) 5G: NR (N1/3/8/28/38/41/77/78/79)

WPAN RADIO
Bluetooth 5.2

Accessory

AC adapter, cable
