Equipped with AI function, it has excellent barcode positioning and barcode reconstruction capabilities. At the same time, intelligent learning can automatically adjust parameters according to different scenarios..
Equipped with AI function, it has excellent barcode positioning and barcode reconstruction capabilities. At the same time, intelligent learning can automatically adjust parameters according to different scenarios..
Provide white and red direct illumination, blue diffuse ring lights, rich lighting system can meet different materials (such as reflection), shape (curved surface), background and bar code color of all kinds of complex scanning code needs.
Armed with Newland’s latest-generation industrial decoding algorithm, it has strong decoding ability for DPM barcodes such as radium carving and dotting barcodes.

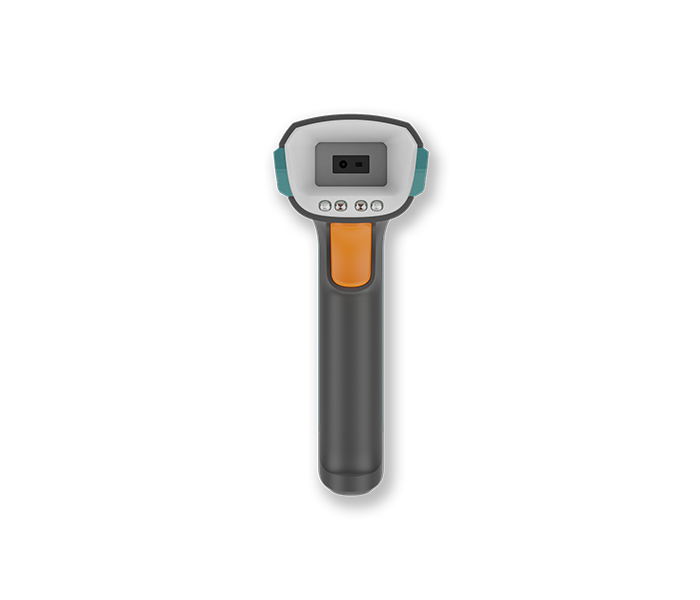

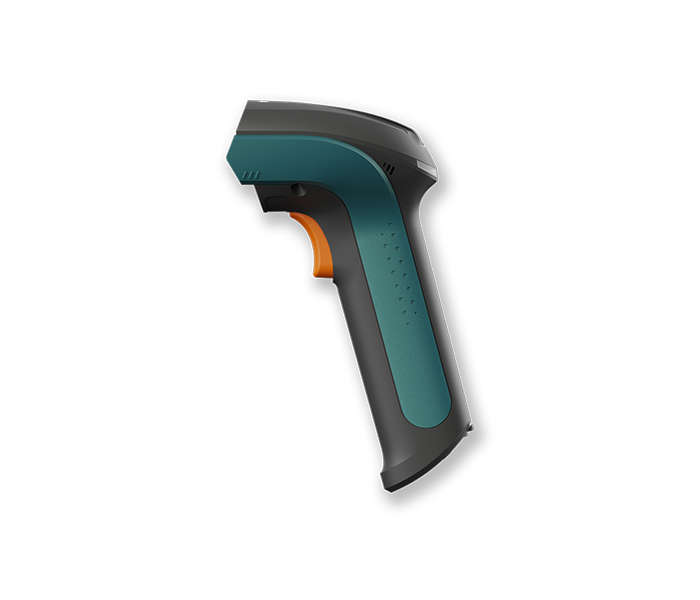

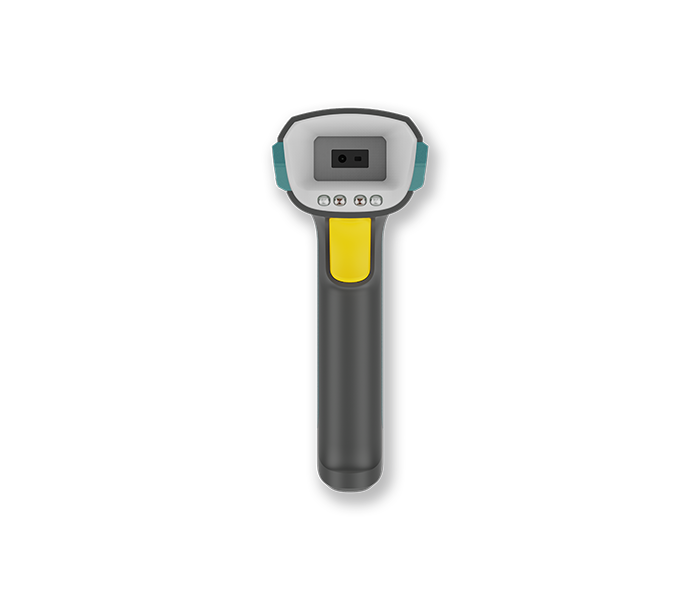

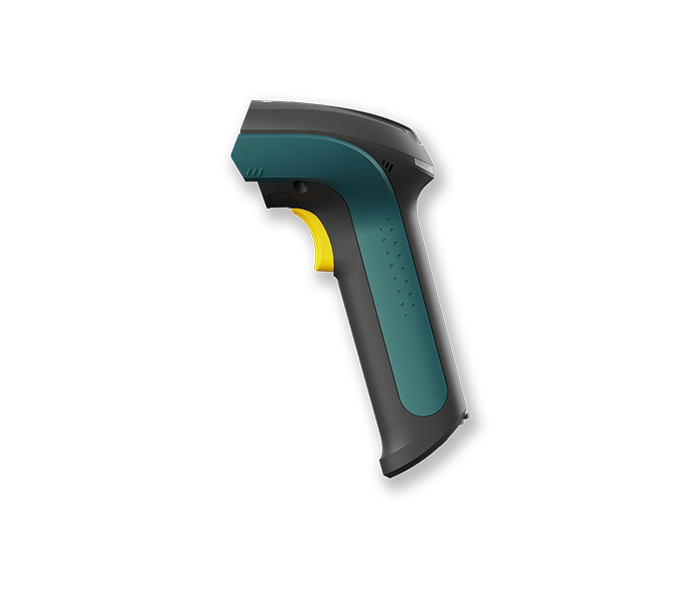

The NLS-NVH220B-HD, built into an IP64-sealed and can withstand repeated falls from 1.8 meters to the ground, with excellent reliability and stability.
Performance | Image Sensor | 1280 × 960 CMOS |
| Illumination | Direct: white & red light LED; |
|
| Aiming | Diffuse: Ring of blue LEDs; LED 532nm |
|
| Symbologies | 2D: QR Code, Micro QR Code, PDF 417, Data Matrix. 1D: EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI Plessey, AIM 128, ISBT 128, COOP 25, Deutsche14, Deutsche12. |
|
| Resolution | ≥3mil | |
| Typical Depth of Field | EAN-13(13mil) : 25mm-160mm Code 39(5mil) : 40mm-100mm Code 39(20mil) : 35mm-210mm Data Matrix(10mil) : 0mm-125mm QR Code(20mil) : 20mm-180mm |
|
| Motion Tolerance | 2m/s | |
| Min. Symbol Contrast | 20% | |
| Scan Angle | Roll: 360°, Pitch: ±50°, Skew: ±50° | |
| Field of View | Horizontal 41°, Vertical 31° |
Physical | Interface | USB, RS232, PS/2 |
| Operating Voltage | 5VDC±5% | |
| Rated Power Consumption | 2246mW (typical) | |
| Current@4VDC | Power consumption: 562mA Idle: 116mA Sleep: 43mA |
|

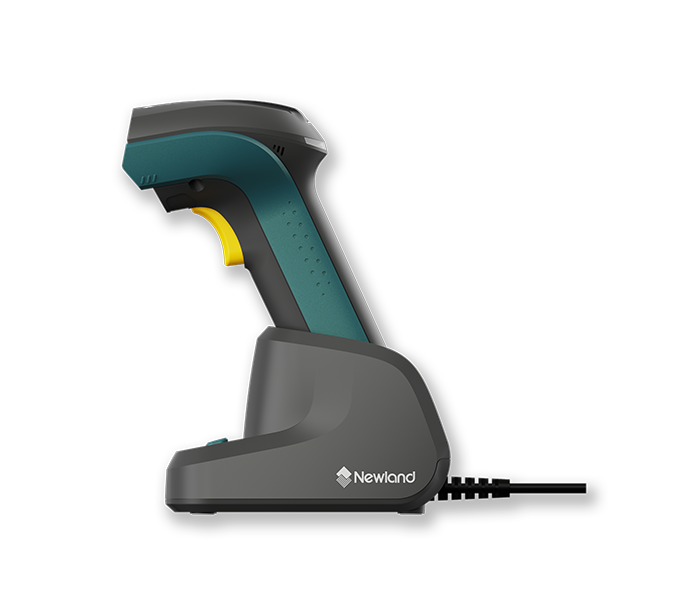

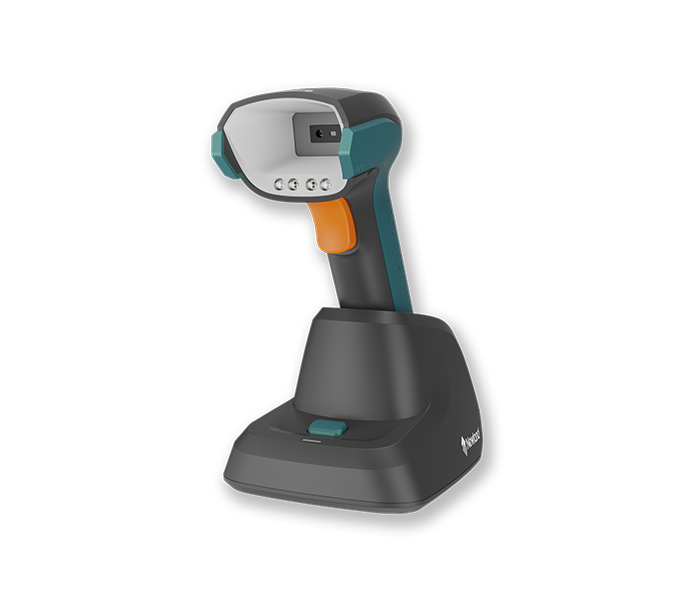

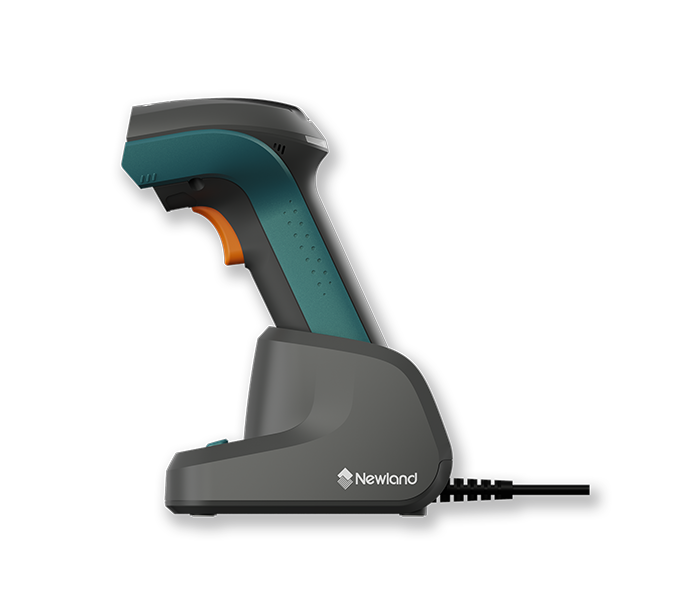

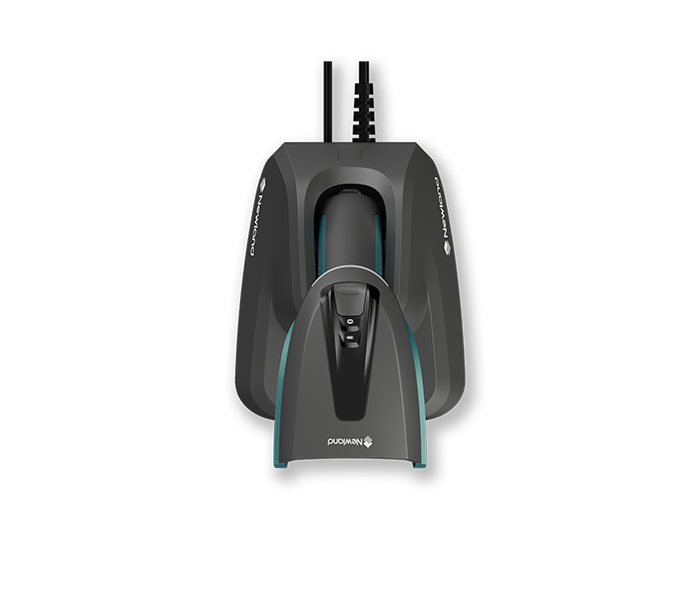

| Dimensions | Scanner: 68(W) × 105(D) × 169(H) mm, Cradle: 103(W) × 127(D) × 83(H) mm |
|
| Weight | Scanner: 220g, Cradle: 230g | |
| Notification | Beep, LED indicator, Vibrator | |
| Communication Distance | 150m (line of sight) | |
| Flash Memory | ≥30000 pieces of code 128 (20 byte of each Code 128) | |
| Battery | 2900mAh | |
| Radio Technology | 2.4 to 2.2835 GHz ISM Band, Bluetooth 5.0, BLE | |
| Expected Battery Life | ≥20 hours of continuous operation, up to 70,000 scans per charge | |
| Expected Charge Time | 2.5 hours |
Environmental | Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C | |
| Humidity | 5% to 95% (non-condensing) | |
| Ambient Light | 0~100,000lux (natural light) | |
| ESD | ±16 KV (air discharge); ±8 KV (direct discharge) | |
| Drop | Scanner: 1.8m，Cradle: 1.2m | |
| Sealing | Scanner: IP64, Cradle: IP42 |
| Image Sensor | |
|---|---|
| 1280 × 960 CMOS | |
| Illumination | |
|---|---|
| Direct: white & red light LED; |
|
| Aiming | |
|---|---|
| Diffuse: Ring of blue LEDs; LED 532nm |
|
| Symbologies | |
|---|---|
| 2D: QR Code, Micro QR Code, PDF 417, Data Matrix. 1D: EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, Interleaved 2 of 5, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI Plessey, AIM 128, ISBT 128, COOP 25, Deutsche14, Deutsche12. |
|
| Resolution | |
|---|---|
| ≥3mil | |
| Typical Depth of Field | |
|---|---|
| EAN-13(13mil) : 25mm-160mm Code 39(5mil) : 40mm-100mm Code 39(20mil) : 35mm-210mm Data Matrix(10mil) : 0mm-125mm QR Code(20mil) : 20mm-180mm |
|
| Motion Tolerance | |
|---|---|
| 2m/s | |
| Min. Symbol Contrast | |
|---|---|
| 20% | |
| Scan Angle | |
|---|---|
| Roll: 360°, Pitch: ±50°, Skew: ±50° | |
| Field of View | |
|---|---|
| Horizontal 41°, Vertical 31° | |
| Interface | |
|---|---|
| USB, RS232, PS/2 | |
| Operating Voltage | |
|---|---|
| 5VDC±5% | |
| Rated Power Consumption | |
|---|---|
| 2246mW (typical) | |
| Current@4VDC | |
|---|---|
| Power consumption: 562mA Idle: 116mA Sleep: 43mA |
|
| Dimensions | |
|---|---|
| Scanner: 68(W) × 105(D) × 169(H) mm, Cradle: 103(W) × 127(D) × 83(H) mm |
|
| Weight | |
|---|---|
| Scanner: 220g, Cradle: 230g | |
| Notification | |
|---|---|
| Beep, LED indicator, Vibrator | |
| Communication Distance | |
|---|---|
| 150m (line of sight) | |
| Flash Memory | |
|---|---|
| ≥30000 pieces of code 128 (20 byte of each Code 128) | |
| Battery | |
|---|---|
| 2900mAh | |
| Radio Technology | |
|---|---|
| 2.4 to 2.2835 GHz ISM Band, Bluetooth 5.0, BLE | |
| Expected Battery Life | |
|---|---|
| ≥20 hours of continuous operation, up to 70,000 scans per charge | |
| Expected Charge Time | |
|---|---|
| 2.5 hours | |
| Operating Temperature | |
|---|---|
| 0°C to 50°C | |
| Storage Temperature | |
|---|---|
| -20°C to 70°C | |
| Humidity | |
|---|---|
| 5% to 95% (non-condensing) | |
| Ambient Light | |
|---|---|
| 0~100,000lux (natural light) | |
| ESD | |
|---|---|
| ±16 KV (air discharge); ±8 KV (direct discharge) | |
| Drop | |
|---|---|
| Scanner: 1.8m，Cradle: 1.2m | |
| Sealing | |
|---|---|
| Scanner: IP64, Cradle: IP42 | |
