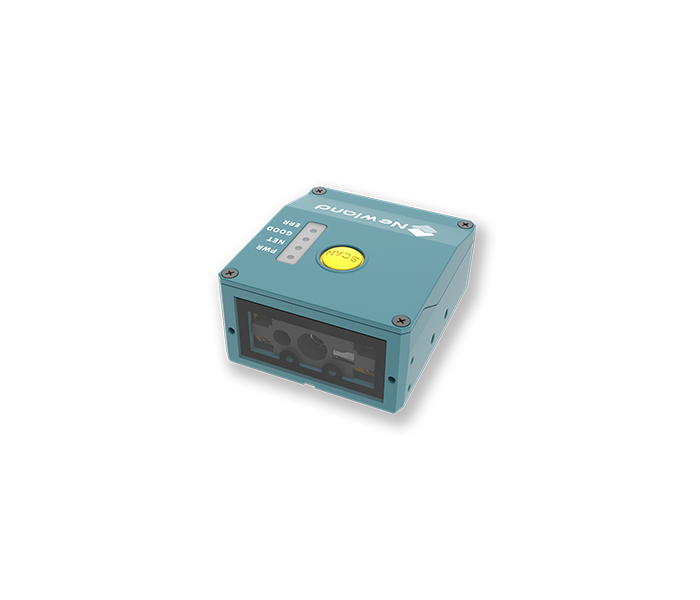

Equipped with next-generation AI platform, 1280×800 high-resolution low-noise image sensor, and IP54-rated design, the NLS-NVF230 enhances optical performance, delivering exceptional decoding capabilities and reliability.
Featuring a proprietary AI-powered industrial decoding algorithm, the NLS-NVF230 delivers exceptional performance in decoding both 1D and 2D barcodes. It instantly scans printed and non-reflective barcodes upon power-up, with no need for image parameter adjustments.
The NLS-NVF230 supports various accessories including diffuser, reflector, and magnifier, providing effective solutions for reflective environments and limited installation scenarios, making it suitable for a wide range of applications.
The NSet configuration tool simplifies parameter setup, supporting configuration libraries, multi-code sorting, and script programming, enabling users to access advanced functionalities with ease.
The NLS-NVF230 integrates USB, RS-232, and Ethernet interfaces, supporting mainstream industrial protocols such as TCP, Ethernet/IP, Profinet, and MELSEC/SLMP. With interface auto-adaptation, it enables seamless and rapid connection to debugging software.
Performance | Model Type | NLS-NVF230-SR(Standard depth of field) NLS-NVF230-HD(Near depth of field) |
| Sensor | 1280 × 800 CMOS | |
| Aiming | Cross Laser | |
| Illumination | 4 white LEDs | |
| Symbologies | 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Code 128, Code 39, Code 93, Codabar, UCC/EAN 128, AIM128, Interleaved 2 of 5, ITF-14, ITF-6, Standard 2 of 5, Matrix 2 of 5, COOP 25, Industrial 2 of 5, Plessey, MSI Plessey, ISBT128, Deutsche14, Deutsche12, Code 11. 2D: QR Code, Data Matrix, PDF417, Micro QR. |
|
| Minimum Resolution | ≥3mil | |
| Field of View | Horizontal 51°, Vertical 32° | |
| Typical Depth of Field | NVF230-SR: QR(15mil): 40-310mm DM(10mil): 50-210mm Code39(5mil): 65-230mm EAN13(13mil): 50-460mm NVF230-HD: QR(15mil): 30-175mm QR(5.6mil): 45-85mm DM(10mil): 35-140mm DM(6.7mil): 40-100mm Code39(5mil): 40-140mm |
Physical | Dimensions | 45(W) × 51(D) × 25(H) mm |
| Weight | 184g | |
| Prompt | Buzzer, LED | |
| Operating Voltage | 5 - 24 VDC | |
| Rated Power Consumption | 1600mW | |
| Current@5VDC | Operating: 320mA (typical), 510mA (max). Standby: 84mA |
|
| Input | Minimum ON voltage: ±5V; maximum rated voltage: ±30V; 1 input. | |
| Outputs | Maximum rated current：50mA per channel, maximum voltage (OFF state): ±30V; 2 outputs. | |
| Interfaces | USB, RS-232, TCP/IP, UDP, FTP, Modbus, TCP, Ethernet/IP, Profinet, MELSEC/SLMP |
Environmental | Operating Temperature | -20°C to 50°C(-4°F to 122°F) |
| Storage Temperature | -40°C to 70°C(-40°F to 158°F) | |
| Humidity | 5% to 95% (non-condensing) | |
| ESD | ±16 KV (air discharge); ±8 KV (direct discharge) | |
| Sealing | IP54 |
Accessories | Cable | USB cable, USB + I/O cable, RS232 + USB Type-C+ I/O cable, RS232 + Ethernet + I/O cable |
| Adapter | Input 100~240V, output DC 5V/1.5A | |
| Others | Fixed bracket, diffuser (optional), reflector (optional), magnifier (optional) |
